What's Included

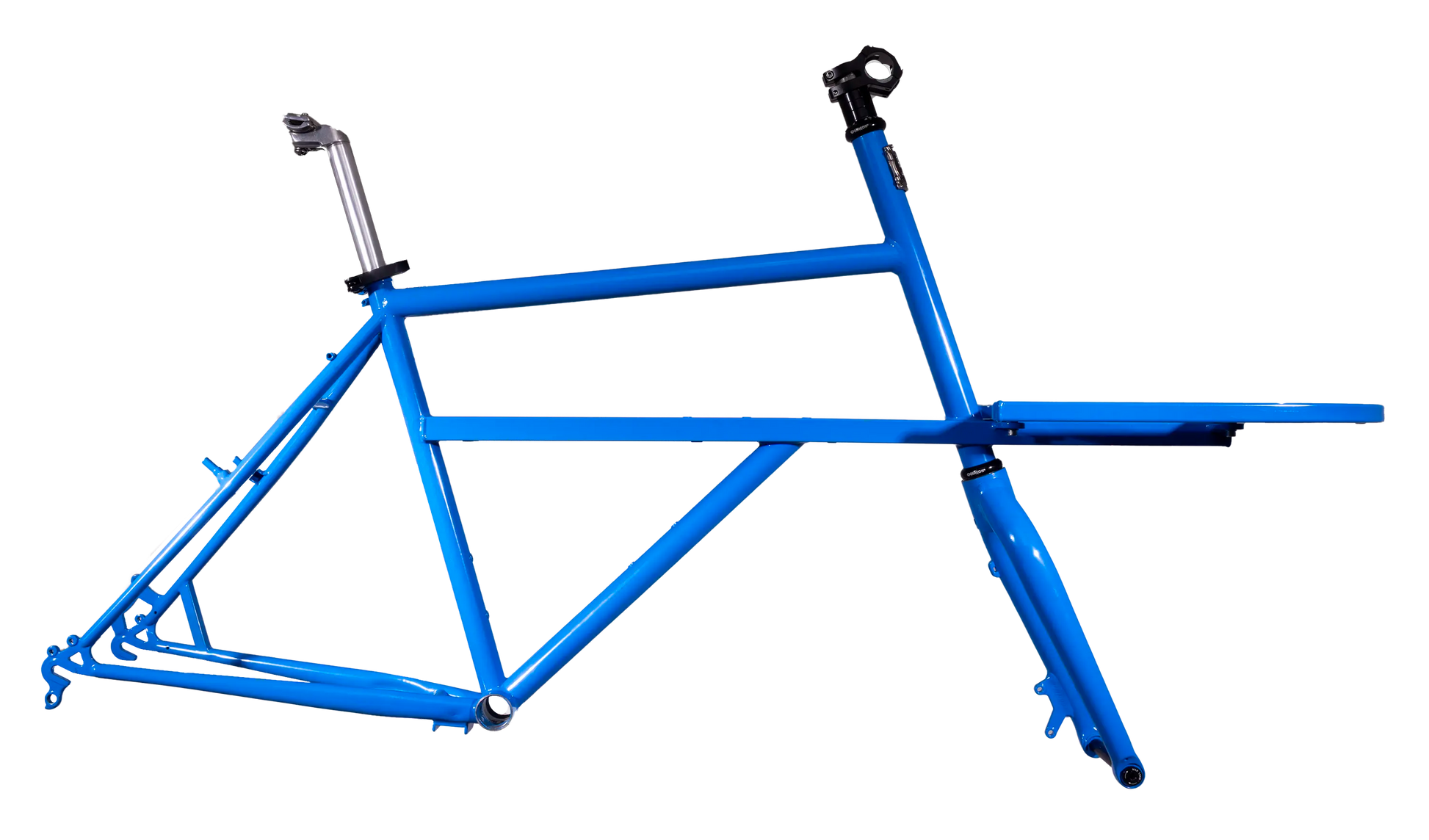

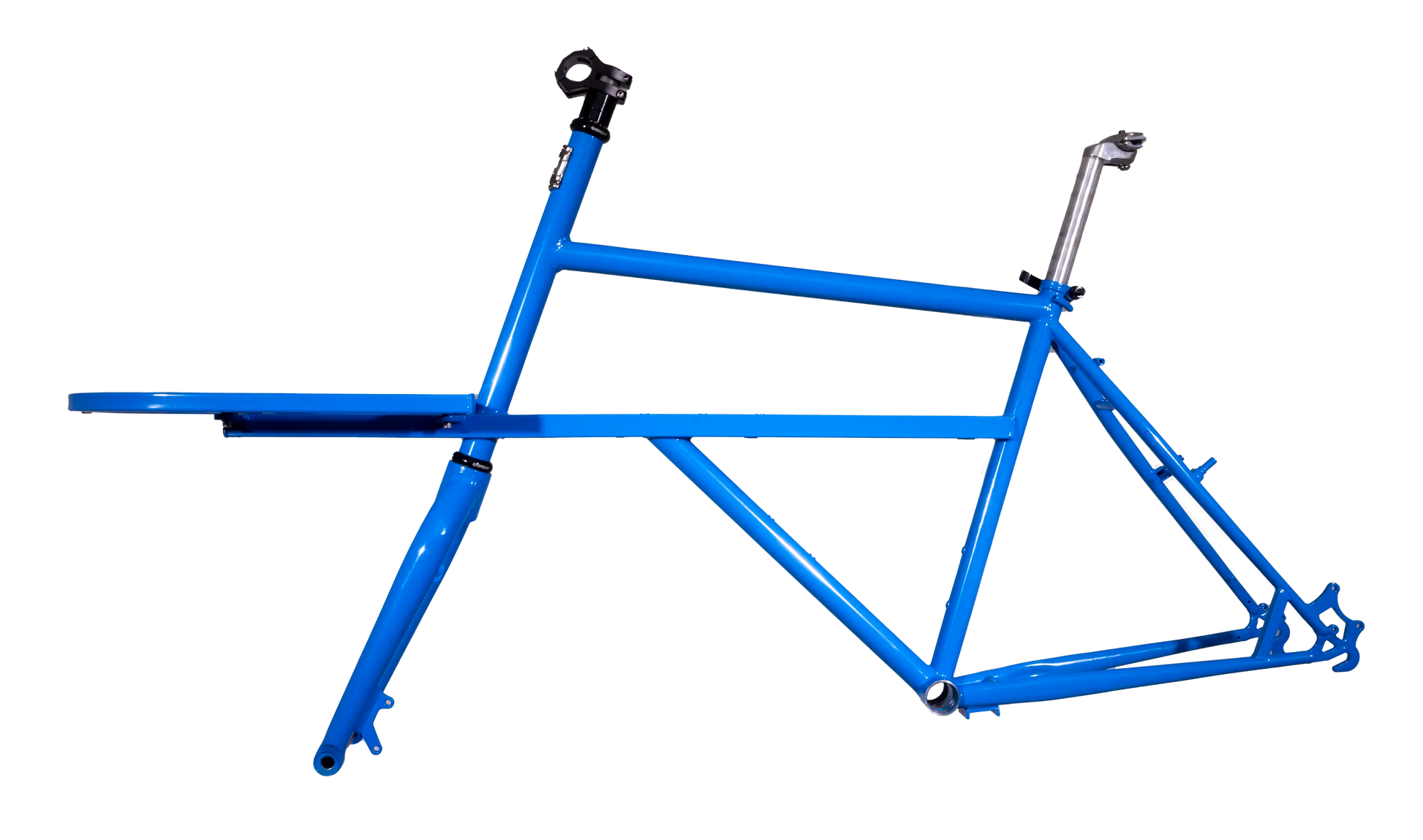

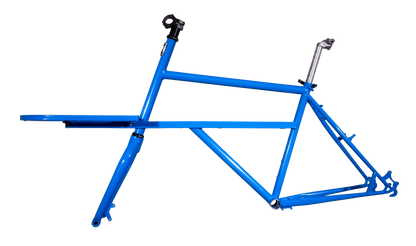

- Gnargo LoopLoader cargo frame (TIG-welded steel, powder-coated finish)

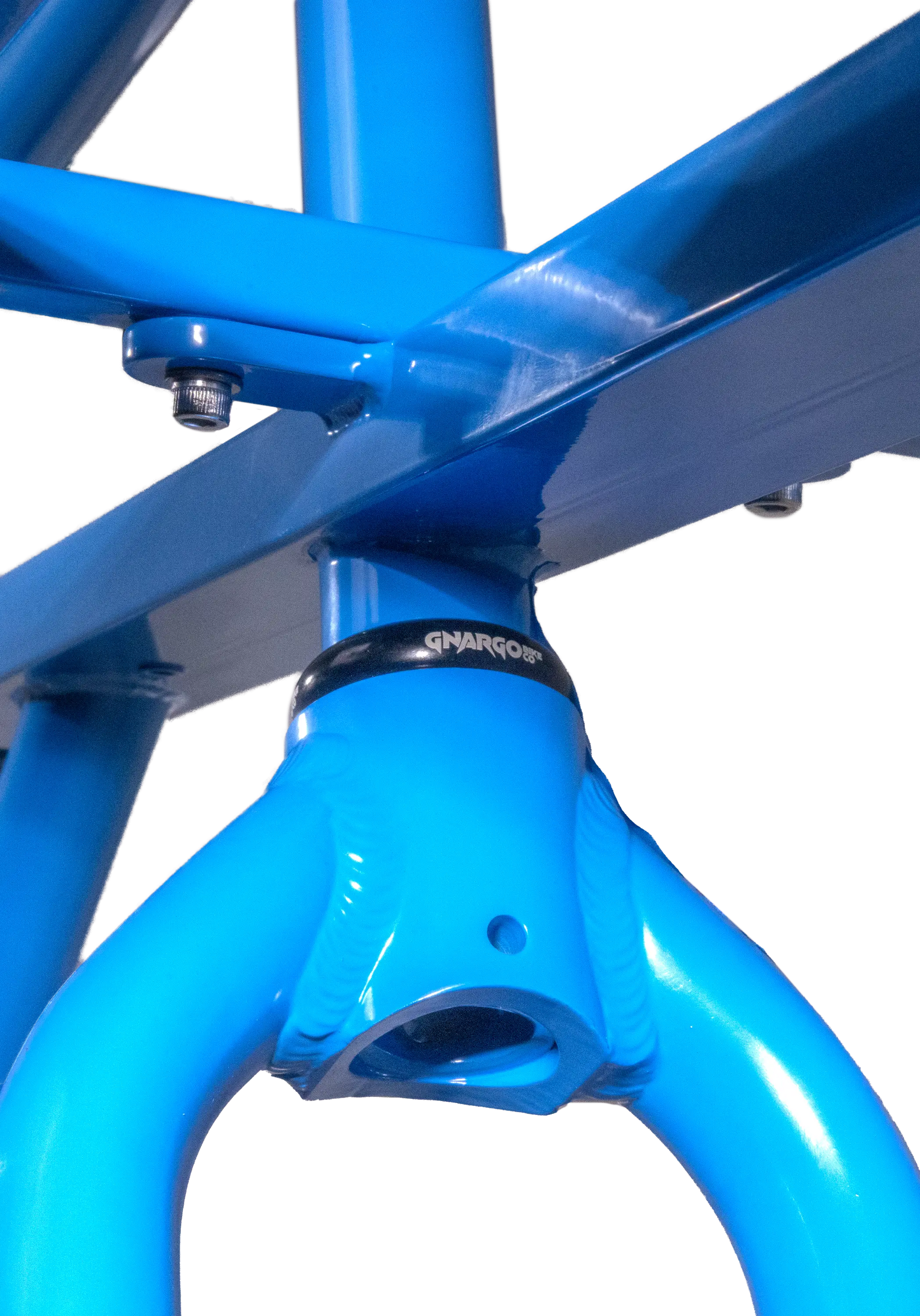

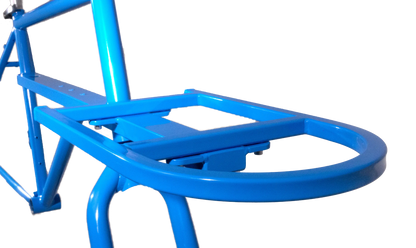

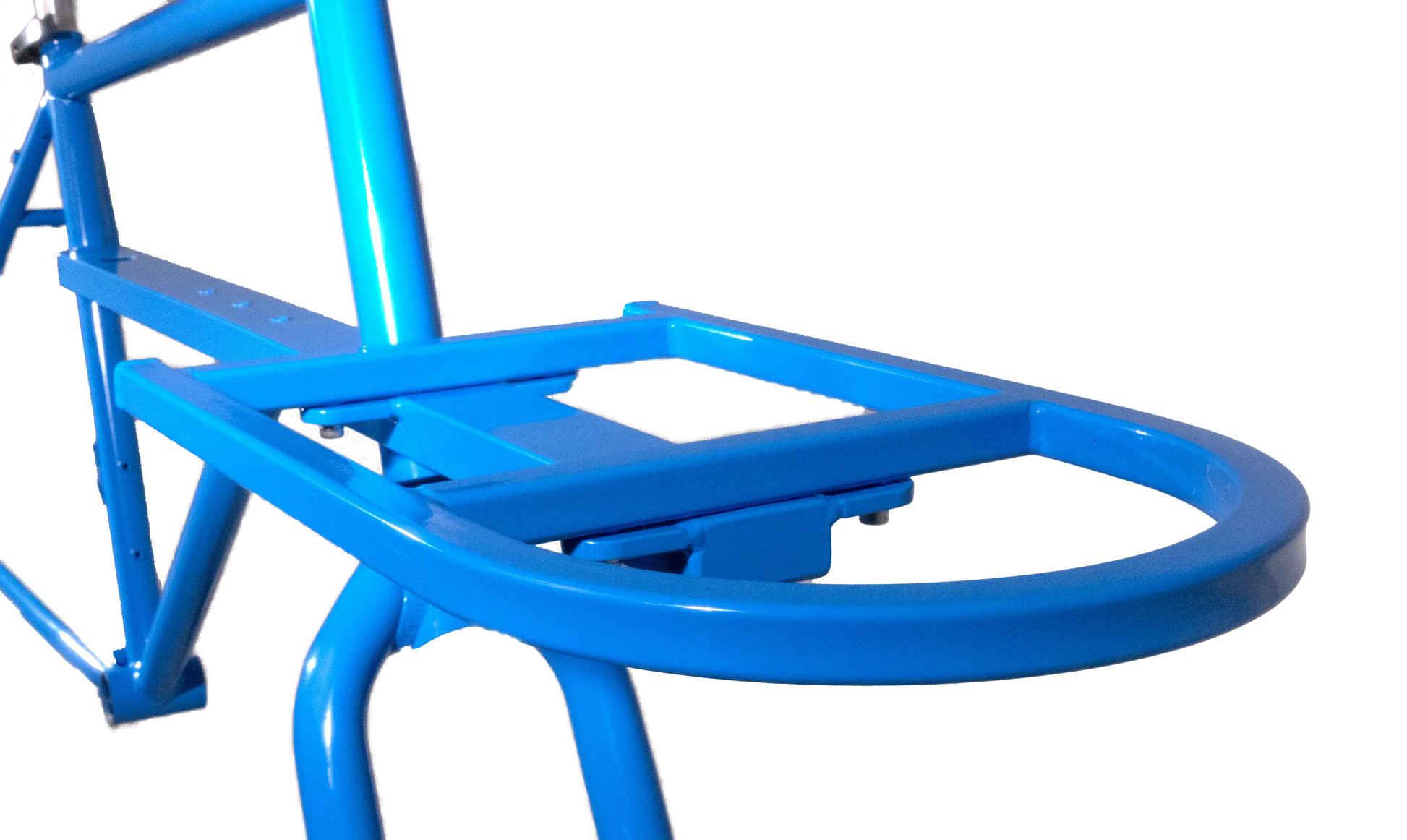

- Welded steel front rack (bolts to frame at 4 points for added strength)

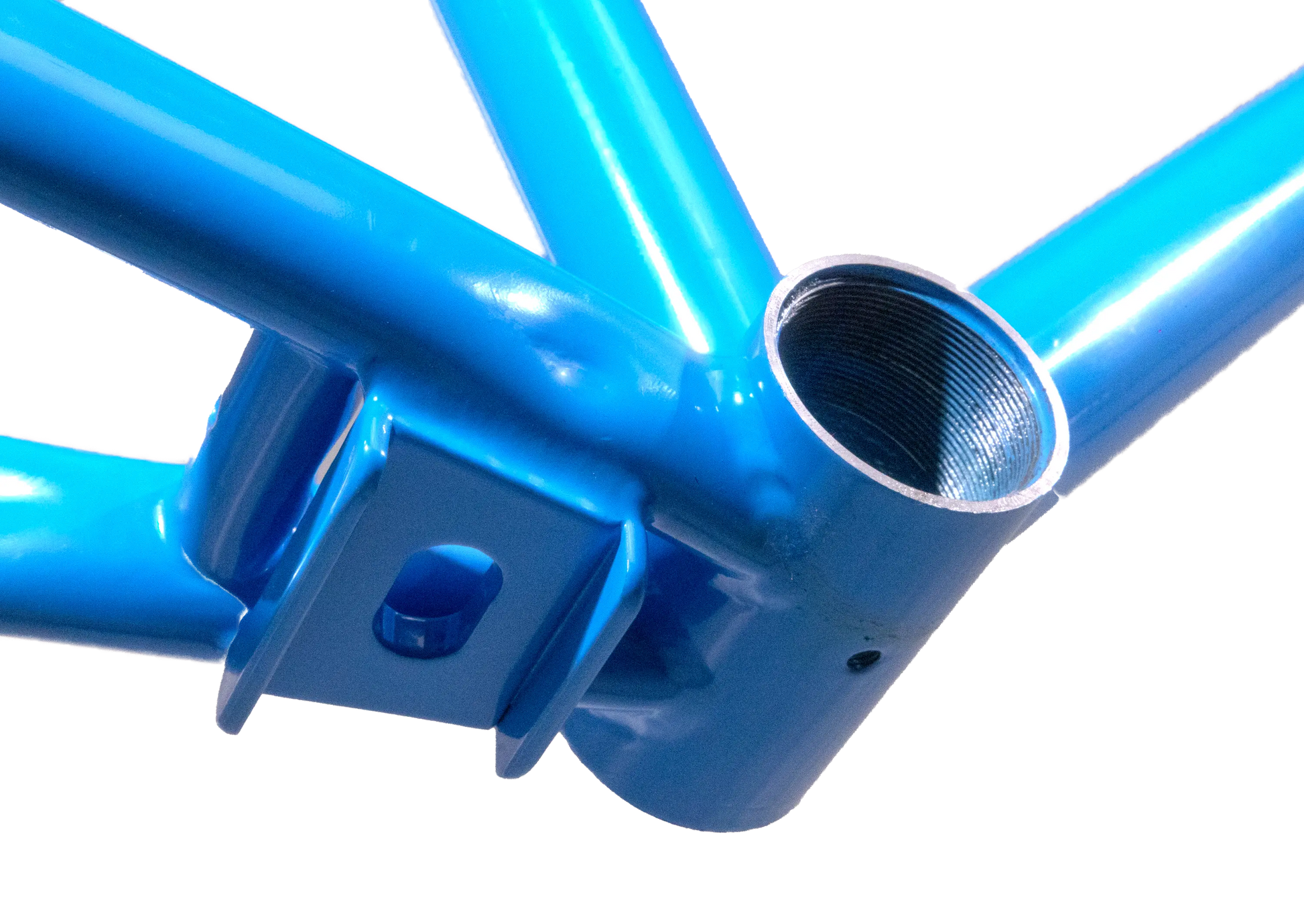

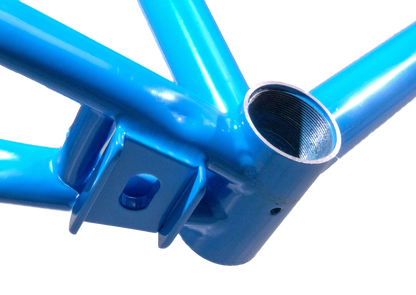

- Center stand plate (compatible with Ursus Jumbo kickstand)
- Aluminum cargo fork (15x110 thru-axle compatible)

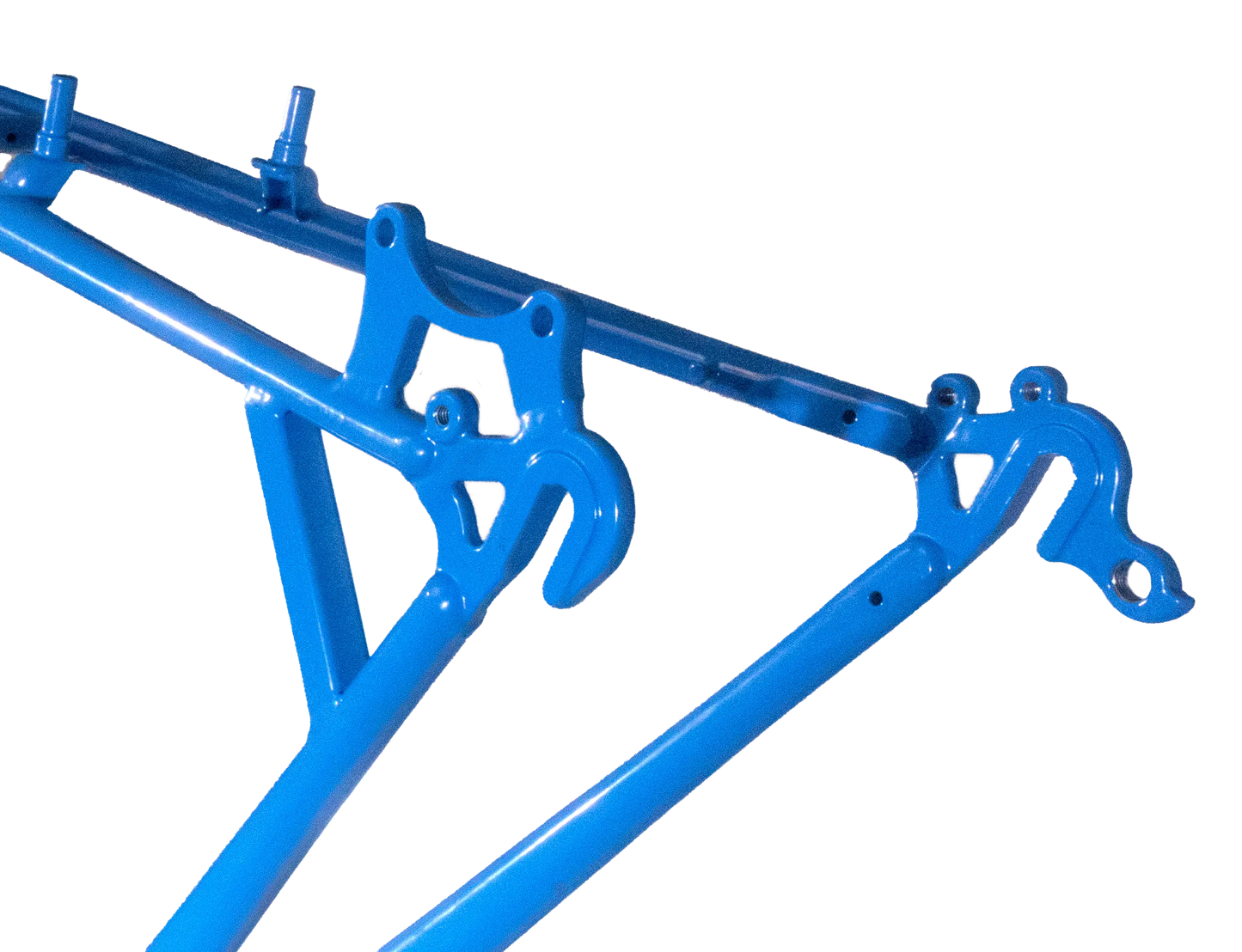

- ISO disc brake mounts (front and rear)

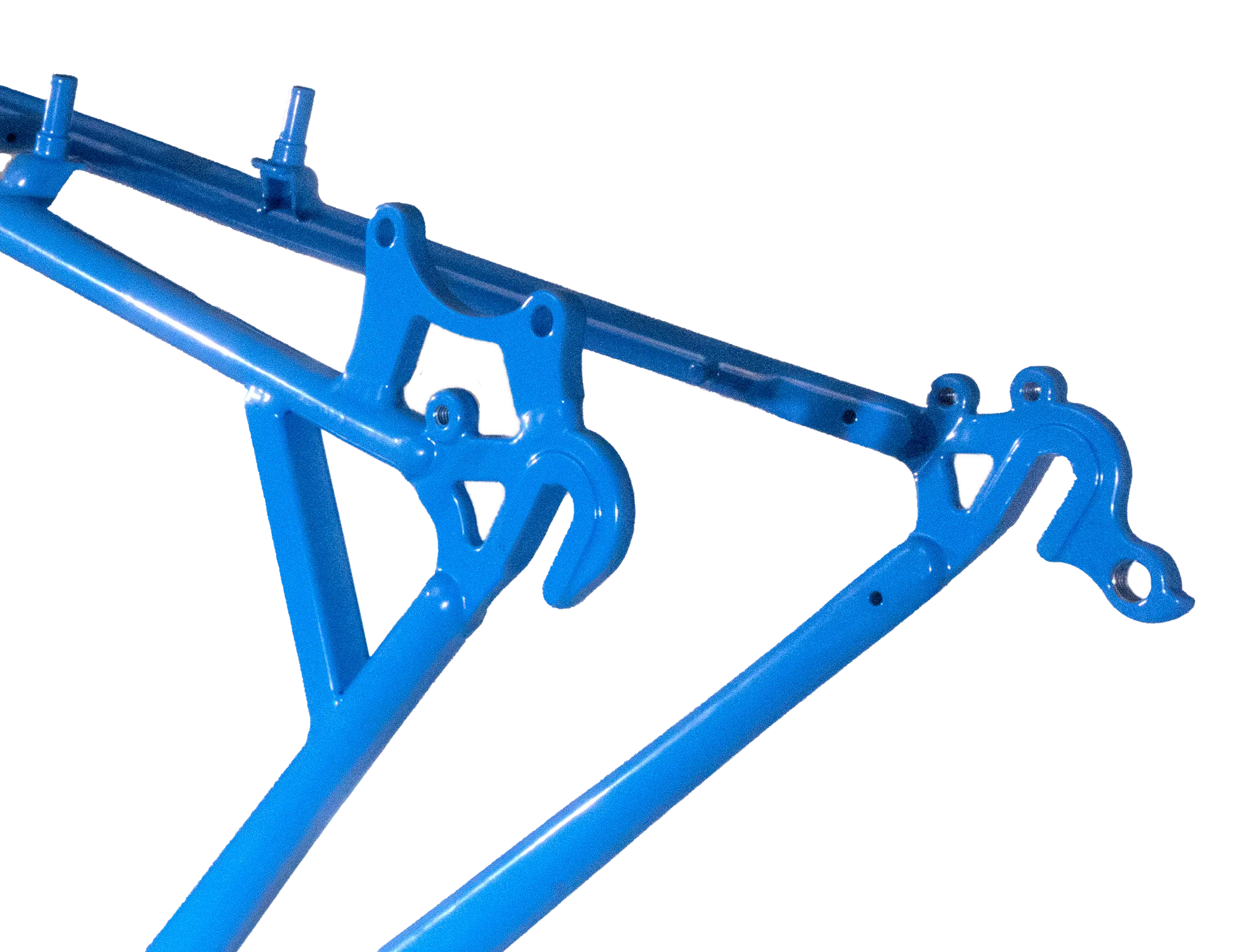

- Midstay mounting bosses (for Gnargo integrated lock add-on)
- Wheel compatibility: 26", 27.5", or 650b
- Axle spacing: 15x110 front, 10x135 rear
- Total carry capacity: up to 335 lbs (including rider)

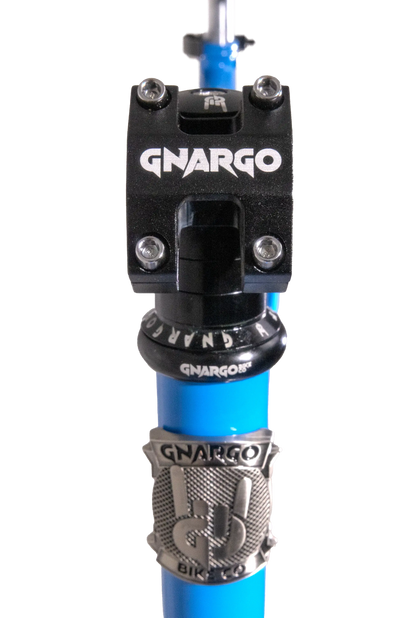

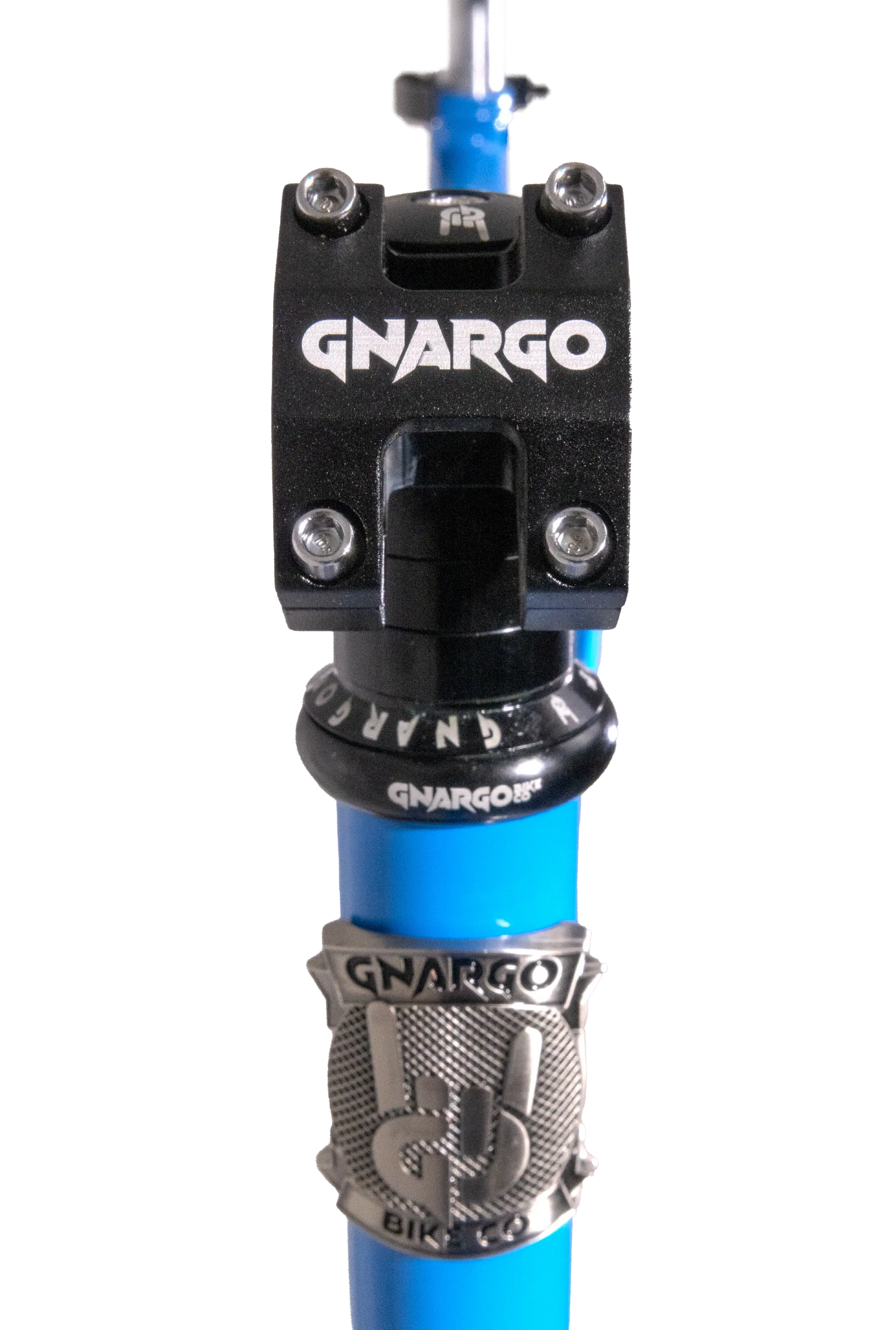

- Included components: Fork, Stem and spacers, Seatpost and seatpost clamp, Cargo rack and mounting hardware
Please note:
Product photography shows frame ports for internal wiring with our controller system. This option is not included by default but can be selected during checkout.
FAQs
Q: How does the color selection process work?
A: You can choose any color using our color selector. Once you've made your pick, we'll match it to the closest available option from our vendors. Before we finalize production, we'll contact you with the matched color for your approval.
Q: What's with the holes in the frame?
A: We pre-drill holes in the frame to support clean internal wiring for electric hub motors and controllers. If you're going electric, we highly recommend adding our custom electric controller and mounting plate for $125—they’re designed to work seamlessly with our frame and make installation a breeze.
Q: Can I ride the bike without the electric components installed?
A: Absolutely. Our frames are fully functional as traditional pedal-powered bikes. The internal wiring ports won’t affect your ride if you decide to go analog.
Q: How long will it take to receive my bike after I order?
A: Because each bike is made to order—including your custom color—we’ll reach out with a lead time estimate after your final color approval. Most orders ship within 6–10 weeks.
