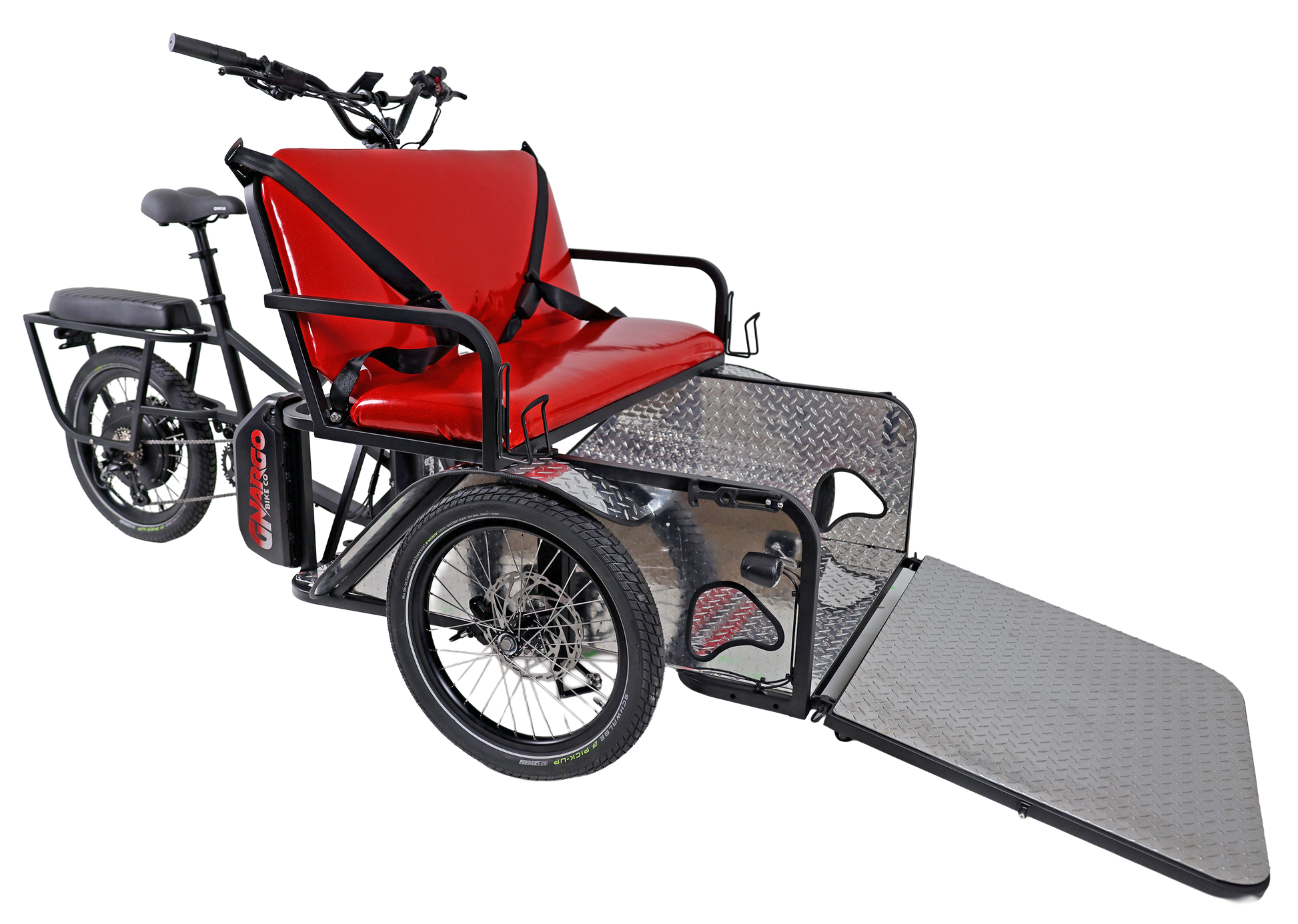

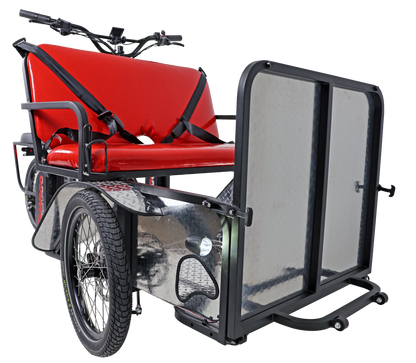

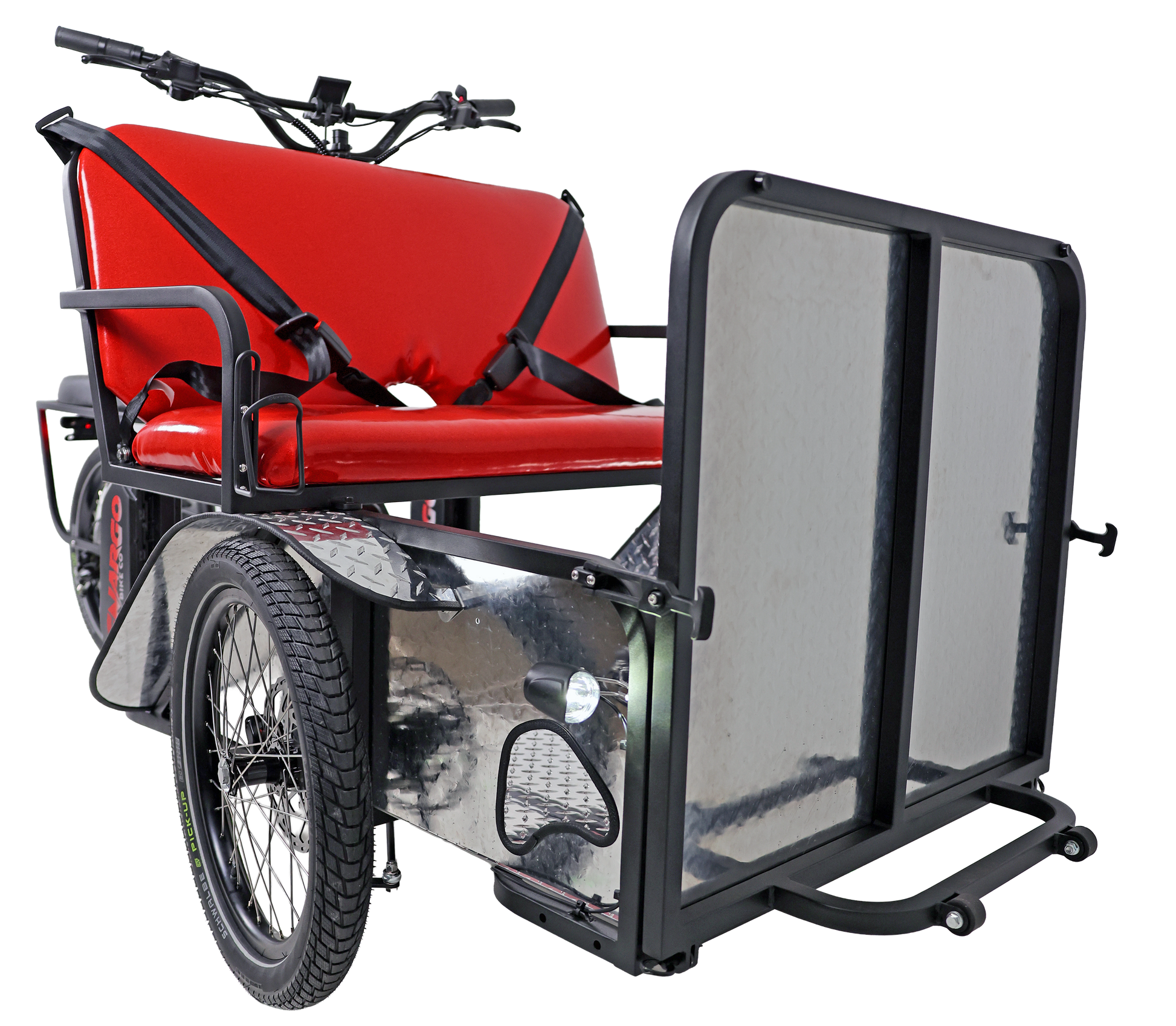

Trishaw
Trishaw
A ride made for connection.

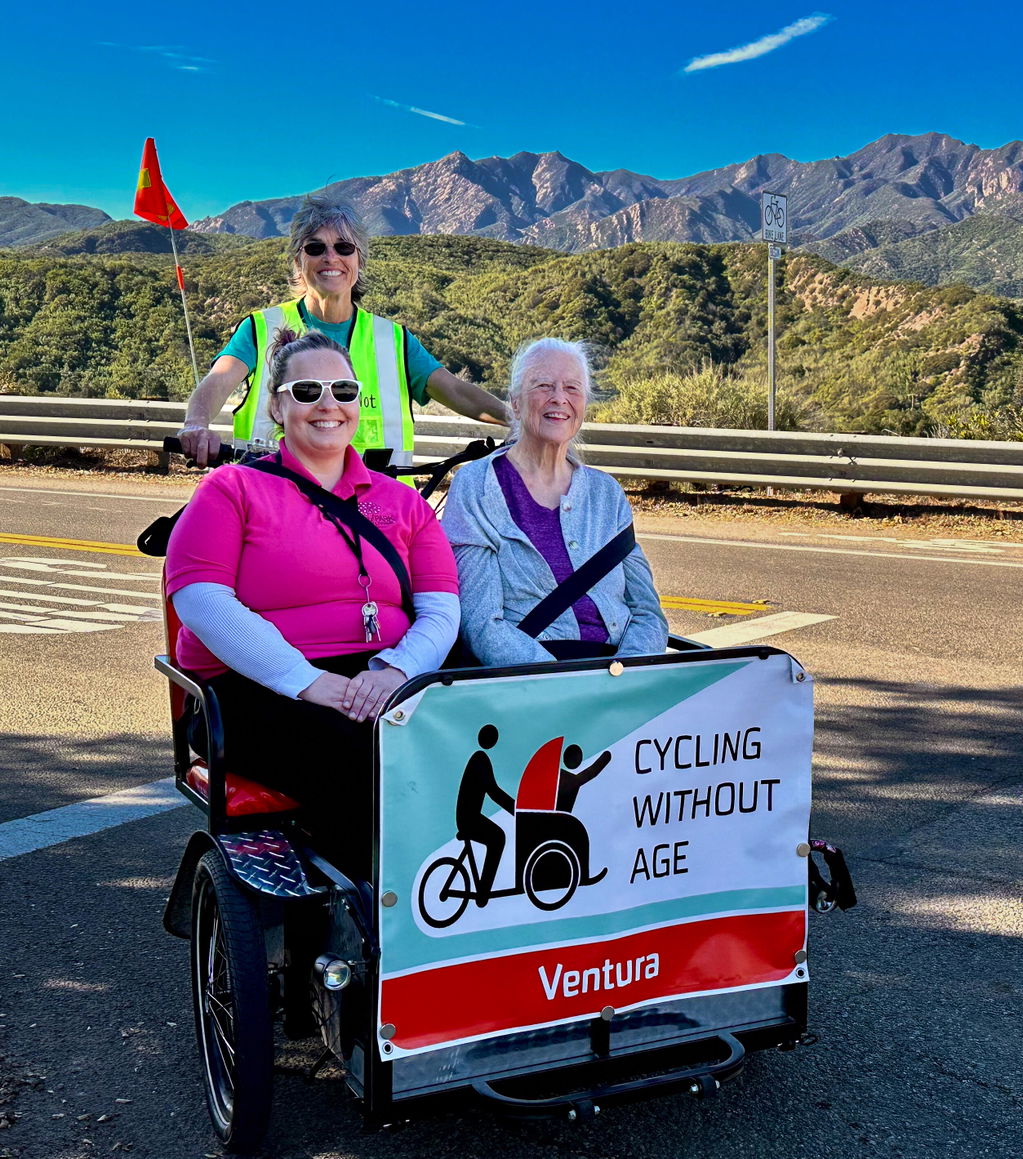

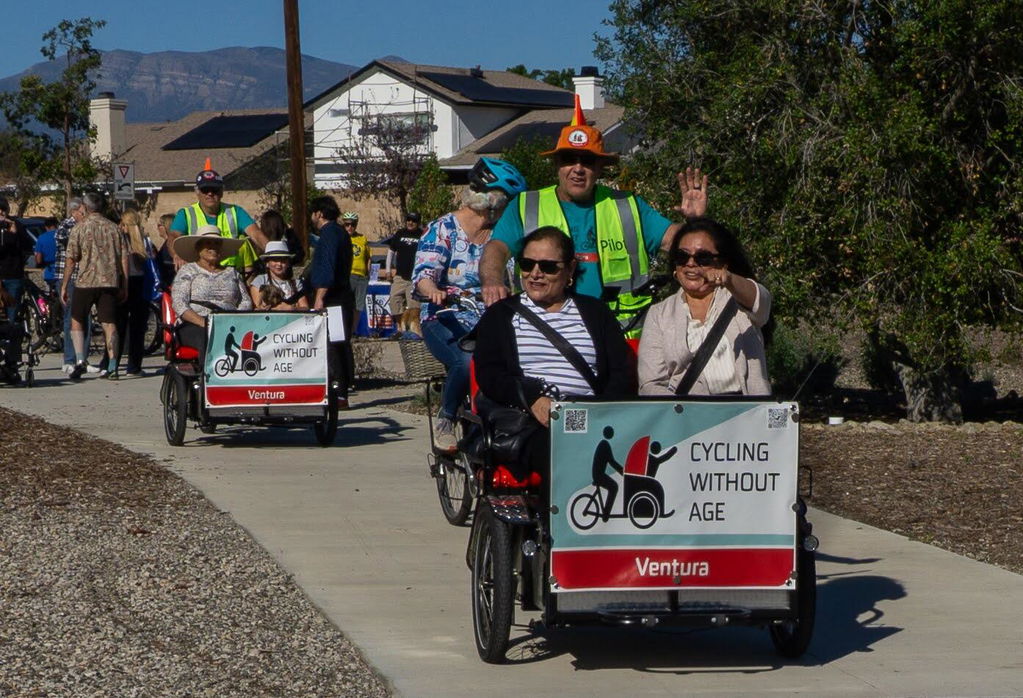

Whether you’re part of a Cycling Without Age chapter, a senior living community, or simply want a fun, accessible way to ride with others, the Gnargo Trishaw delivers a smooth, stable, and joyful experience.
The maintenance-free drivetrain combines Bosch’s Cargo Line mid-drive motor, delivering 120 Nm of torque with an 800 Wh battery, with a 3X3 NINE internal gear hub and Gates Carbon Belt Drive for smooth, dependable support on hills and when carrying passengers or gear. Spacious front seating accommodates two passengers or adapts for wheelchair access, so everyone can enjoy the freedom of cycling.
Proudly built in the USA with as many locally sourced parts as possible, every trishaw is crafted with care for the environment, fair labor, and lasting performance.
Most Trishaw buyers schedule a short consultation before purchasing.
Couldn't load pickup availability
Key Features

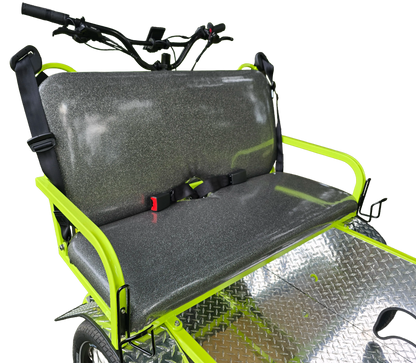

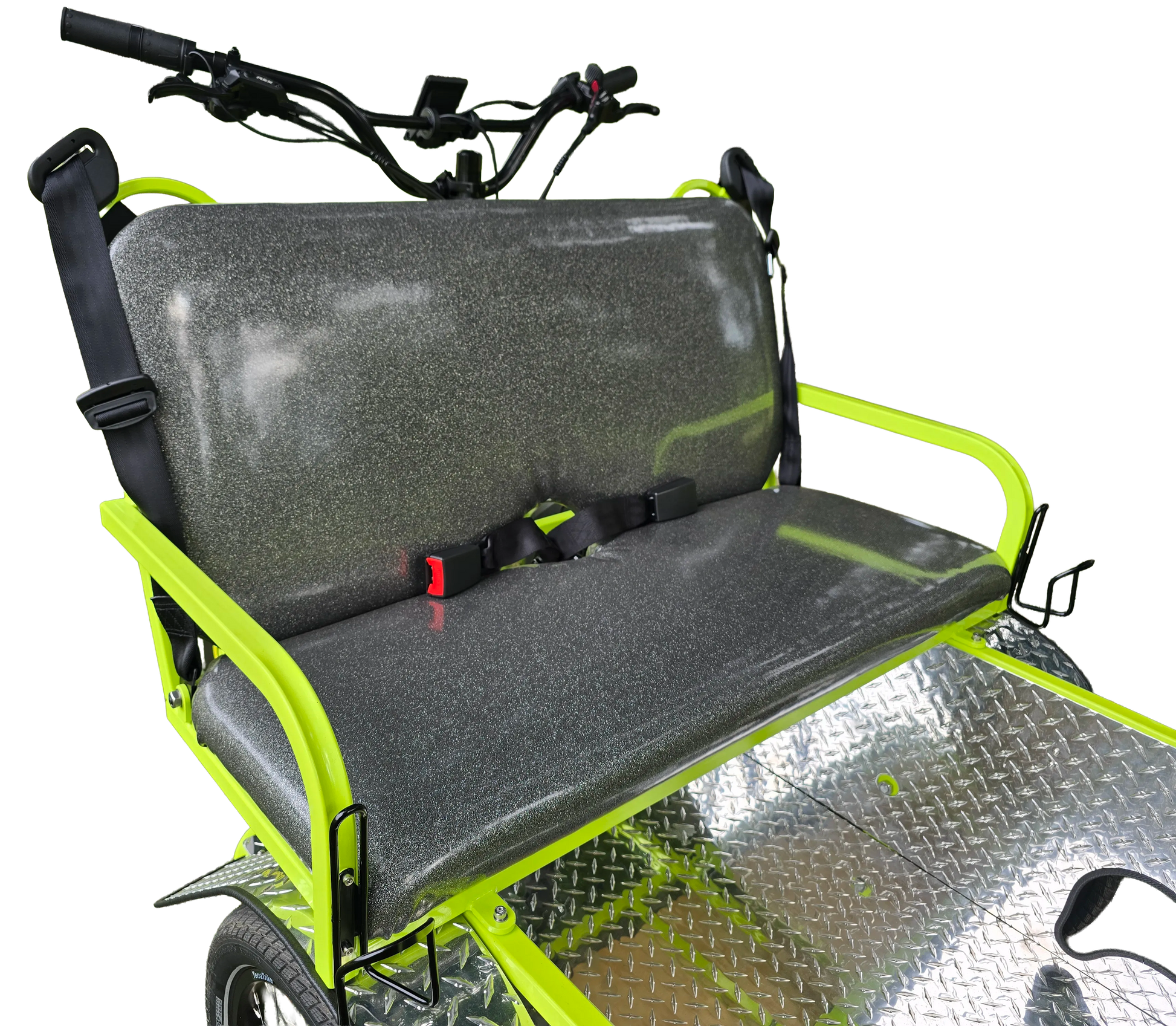

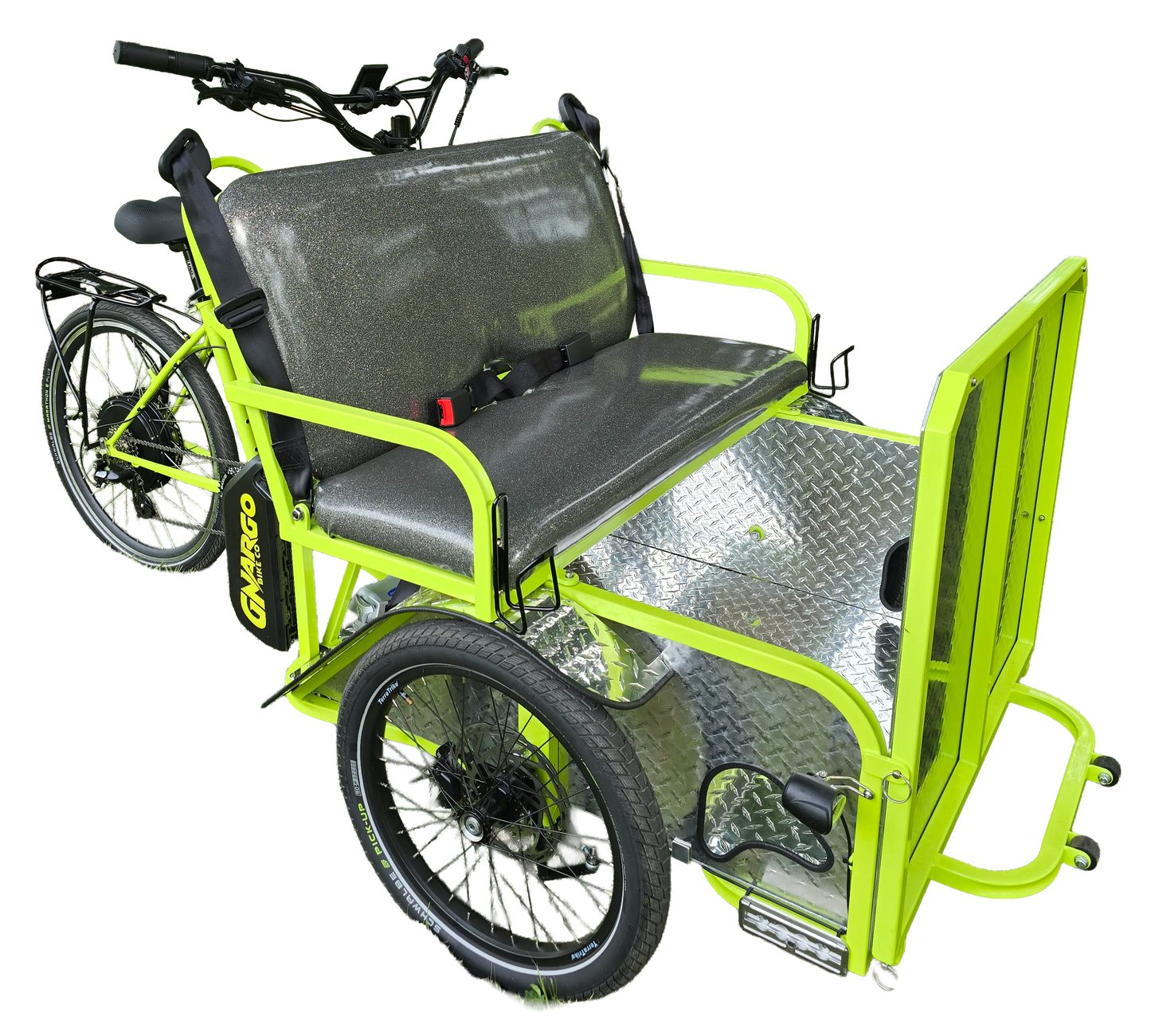

Comfortable Passenger Seating

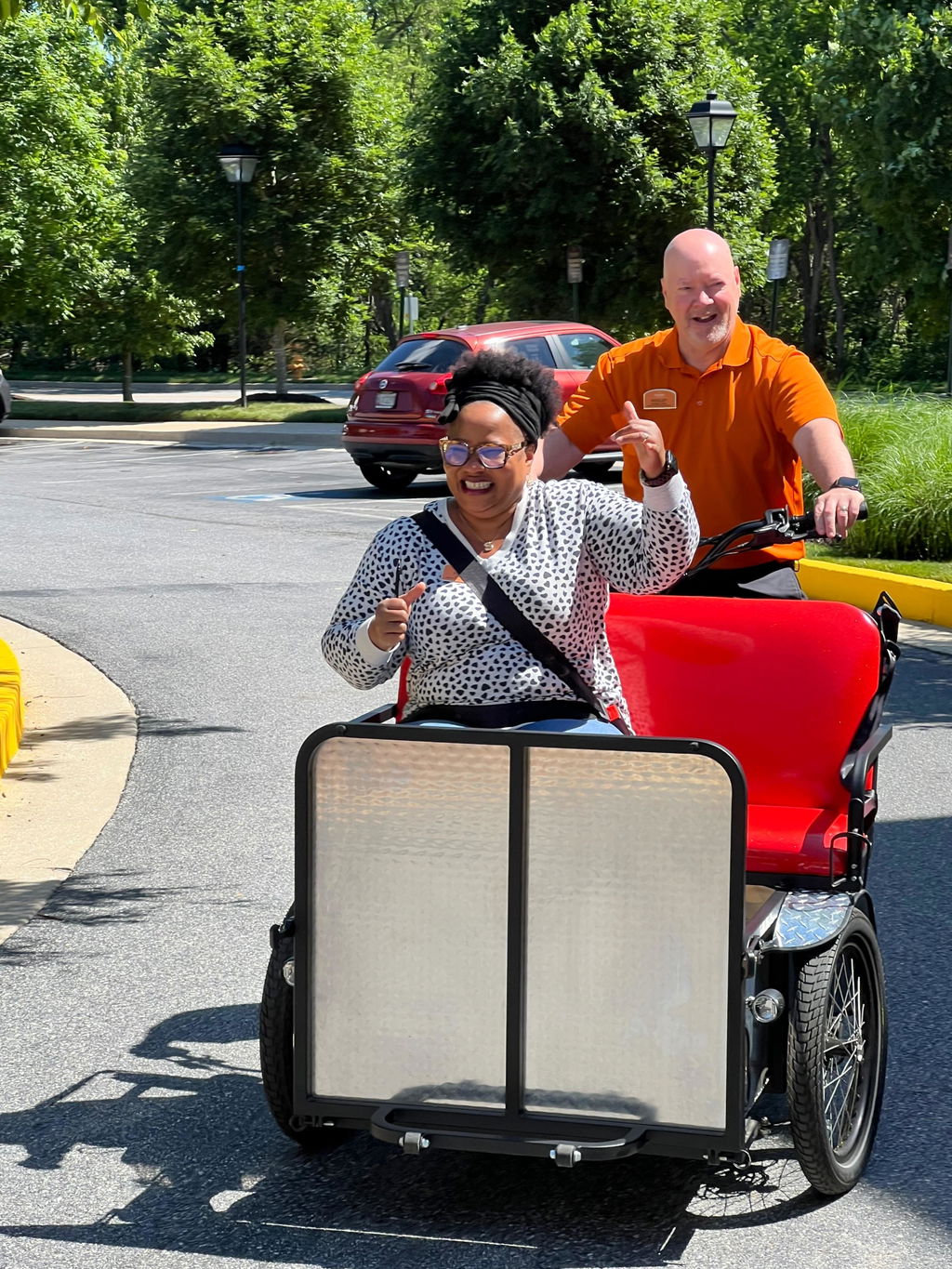

A forward-facing padded bench carries up to two passengers side by side, providing an open view of the surroundings and making conversation with the pilot and other riders easy throughout the ride.

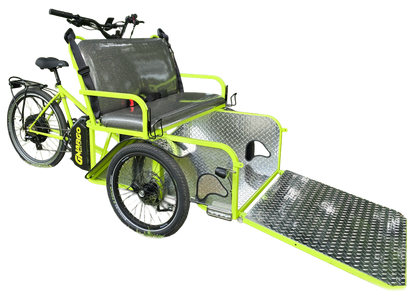

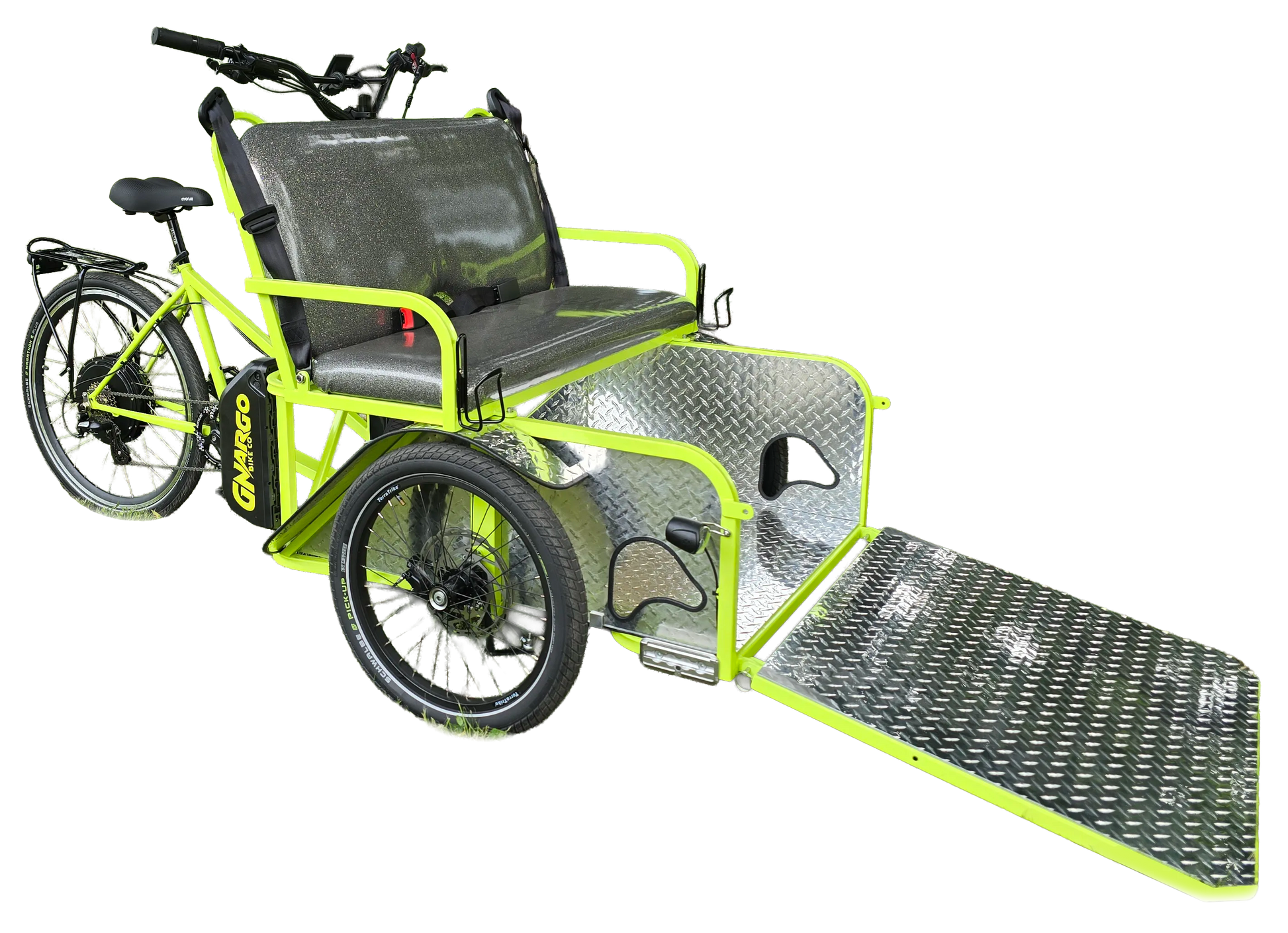

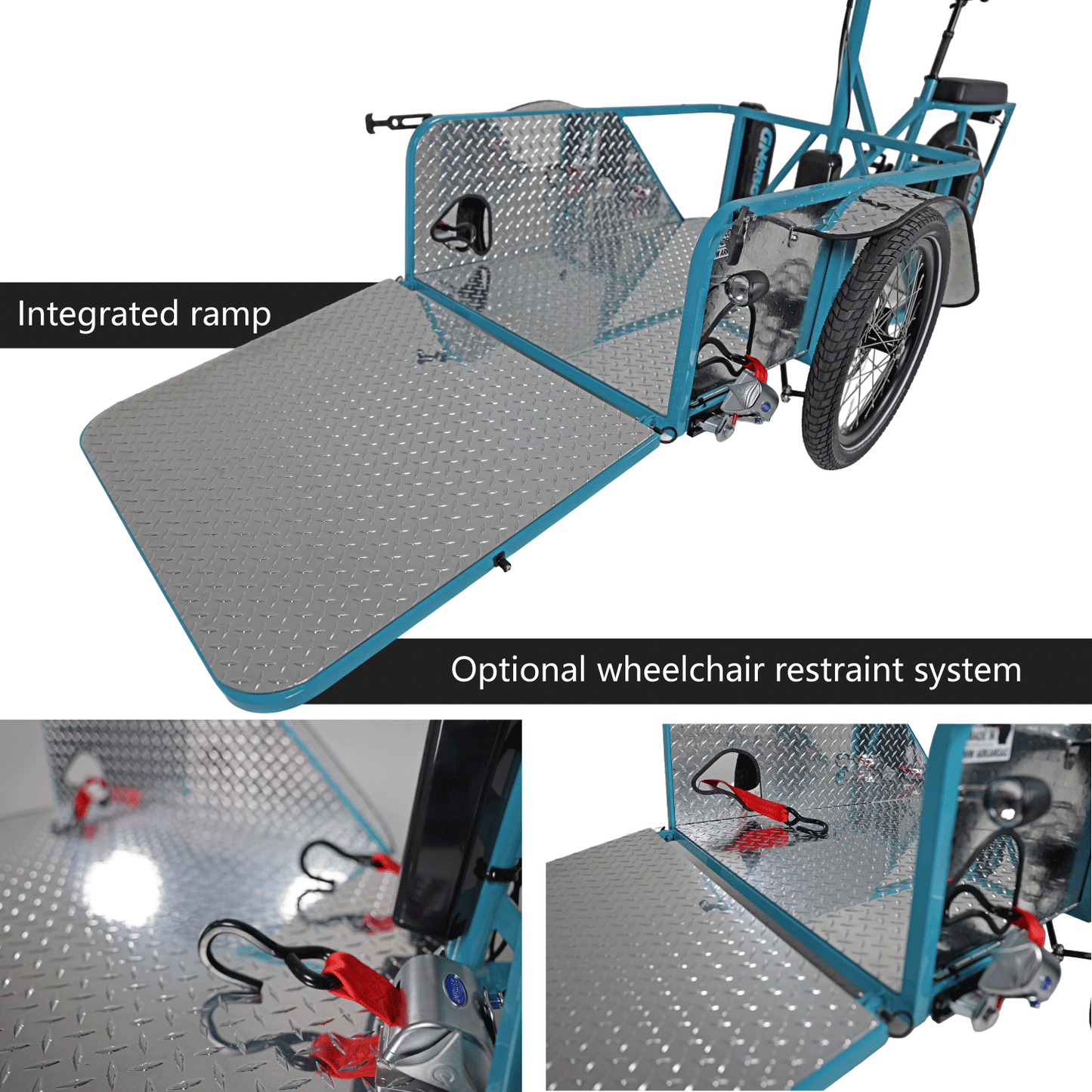

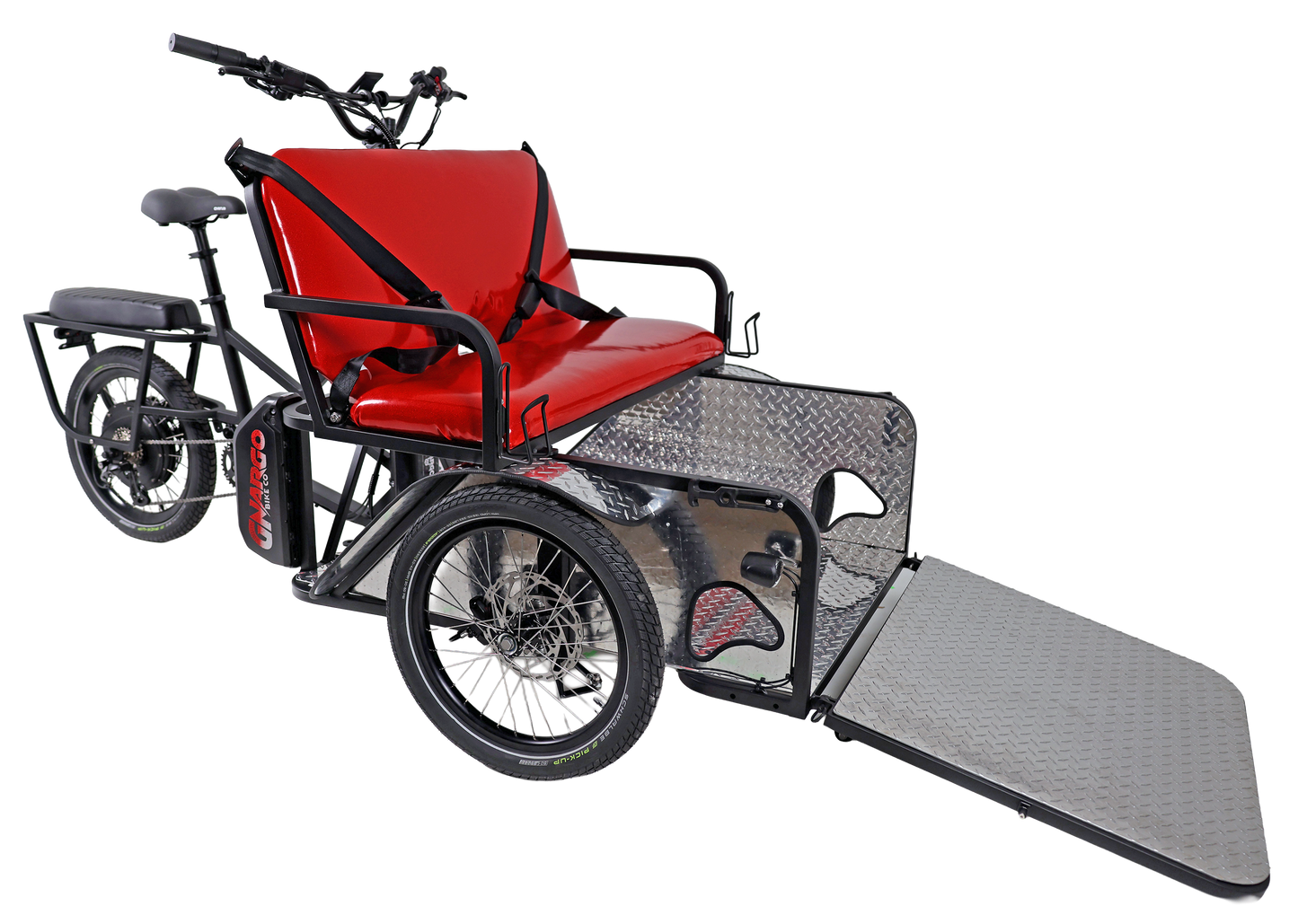

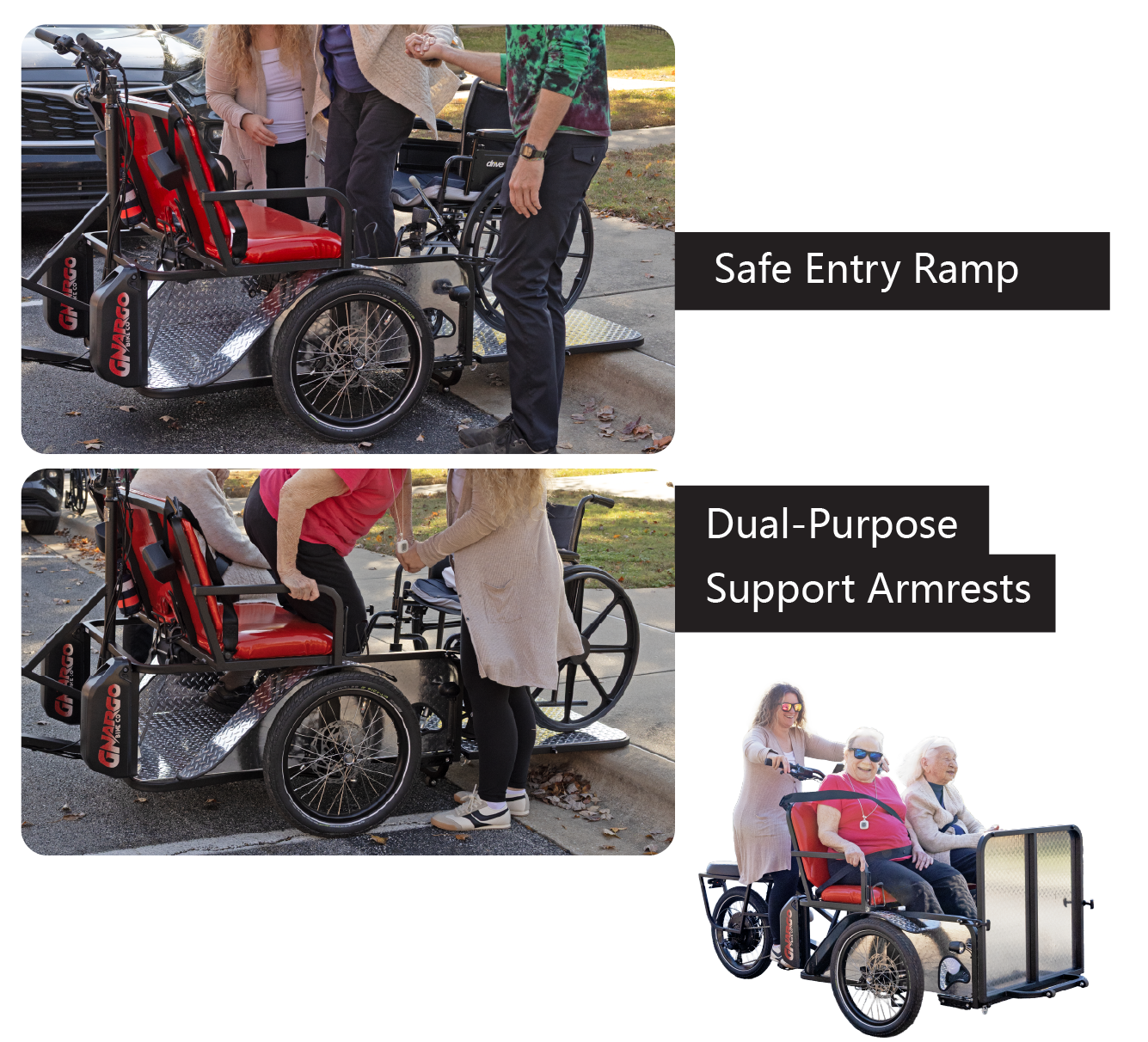

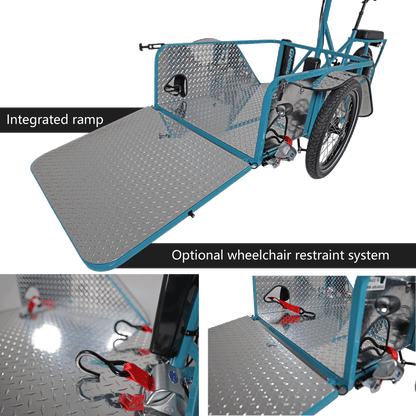

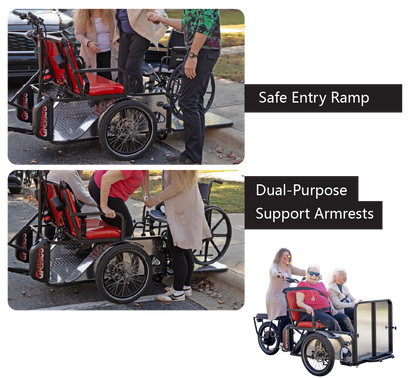

Integrated Wheelchair Ramp & Handrail

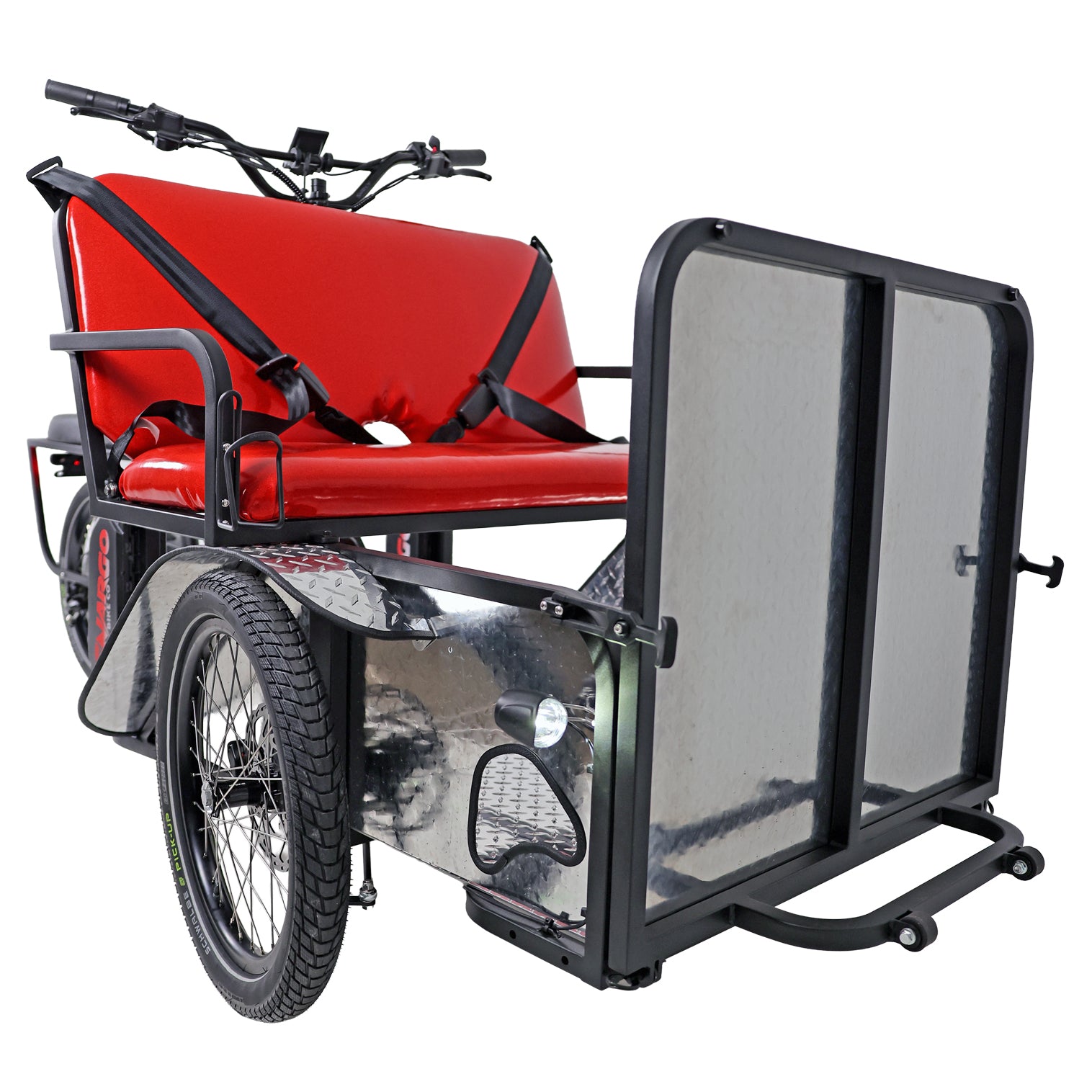

The front gate folds down into an integrated access ramp for wheelchair users and passengers who benefit from easier entry. When raised, it locks securely into place and serves as a handrail around the passenger compartment.
3-in-1 Passenger, Wheelchair & Cargo Platform
The front compartment can carry two seated passengers, one wheelchair user, or utility cargo. The removable passenger bench opens the compartment for wheelchair or cargo use, while the optional Q'Straint Wheelchair Securement System provides wheelchair restraint.

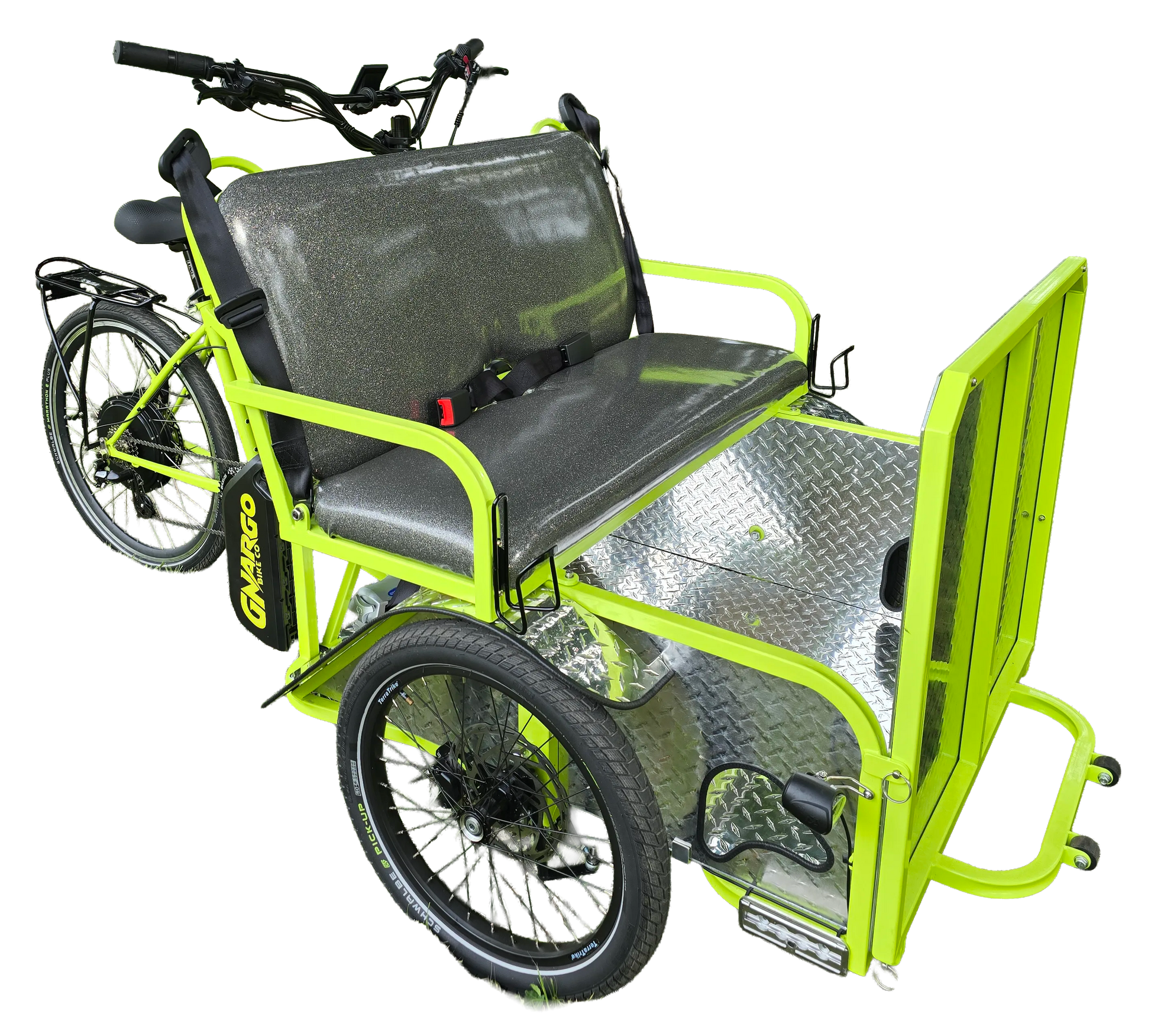

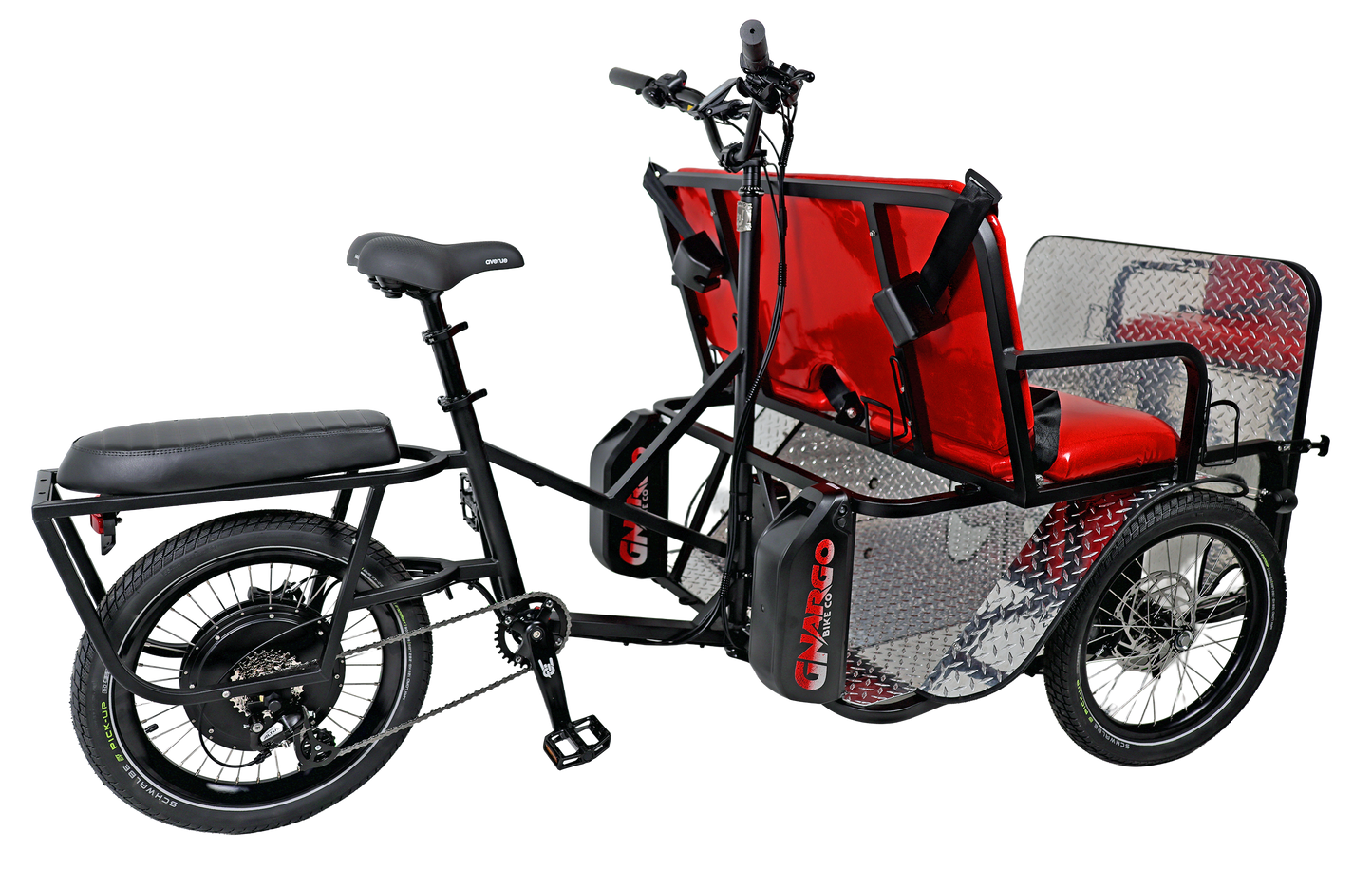

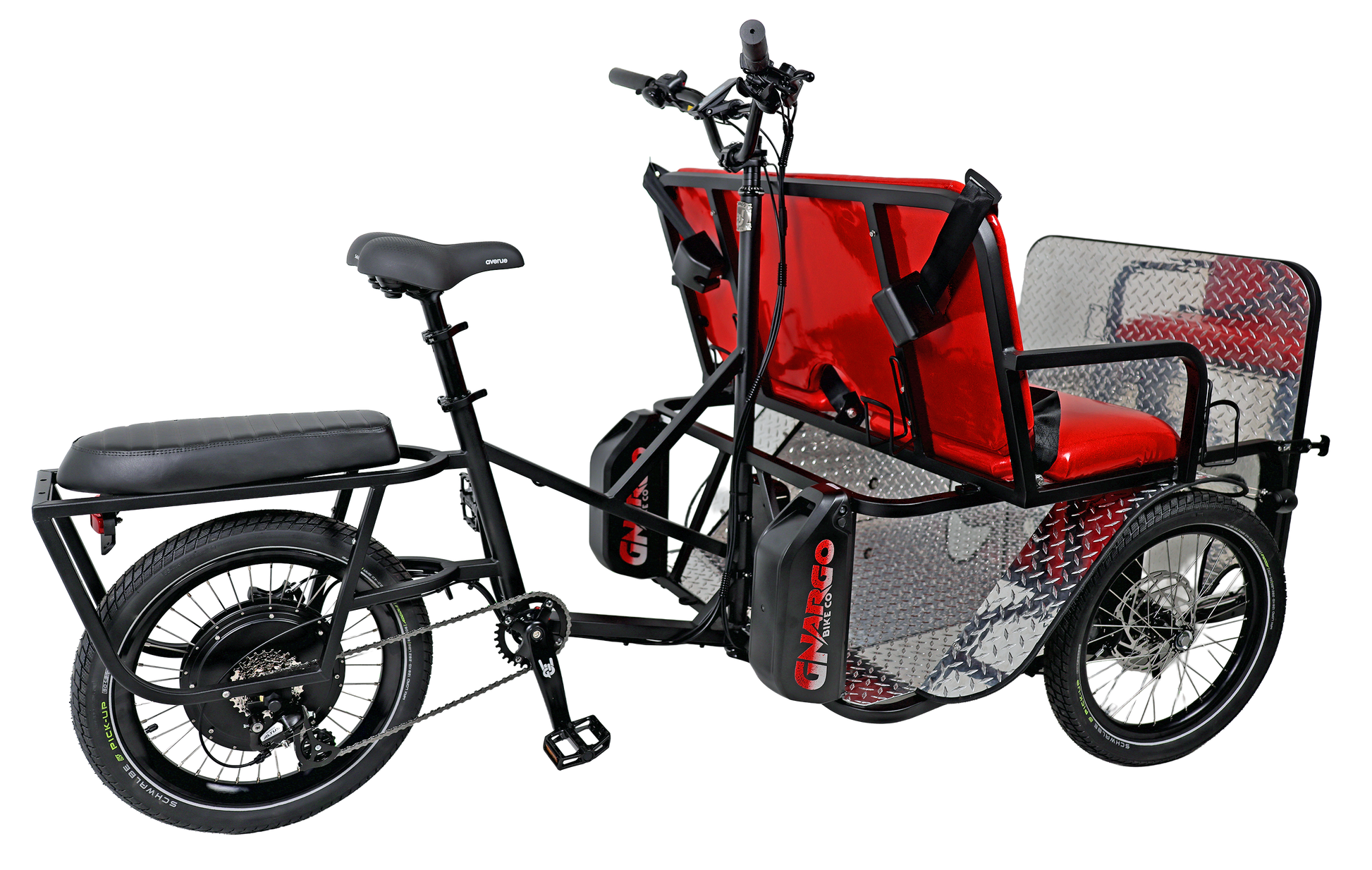

Stable Three-Wheel Platform
Two front wheels support the passenger compartment while a single driven rear wheel provides a familiar cycling experience for the pilot. The purpose-built chassis provides predictable handling at the low speeds typical of community rides.
Purpose-Built for Community Riding
The Trishaw prioritizes accessibility, comfort, visibility, and control rather than speed. Electric assist is limited to 12 mph, making it well suited for community routes, campuses, greenways, neighborhoods, and senior living environments.

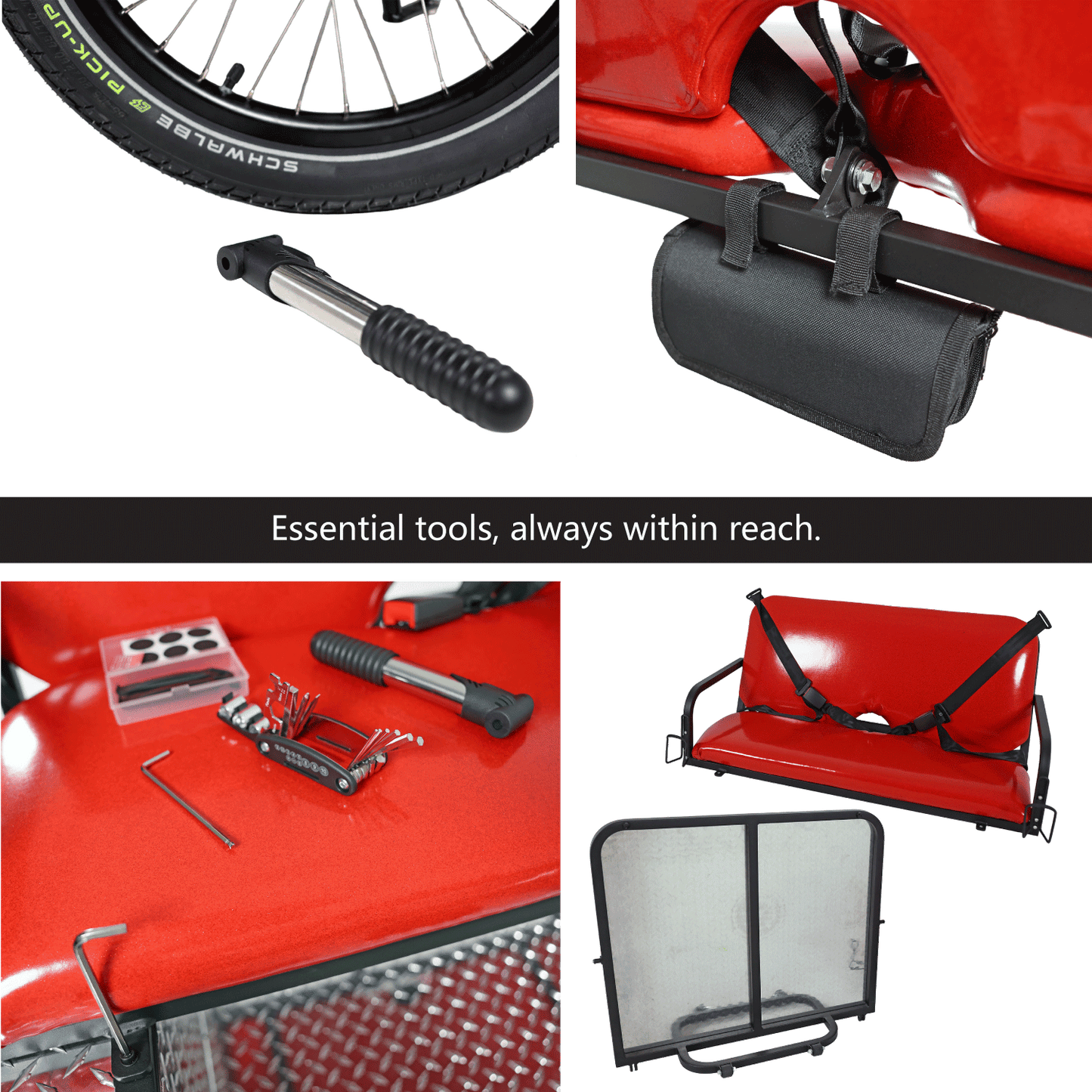

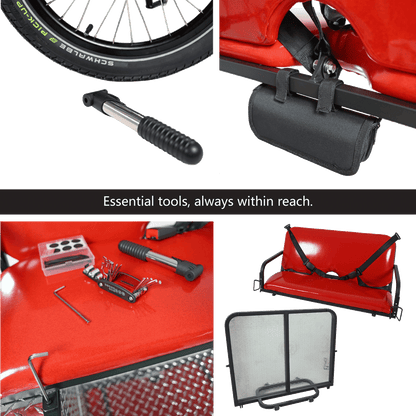

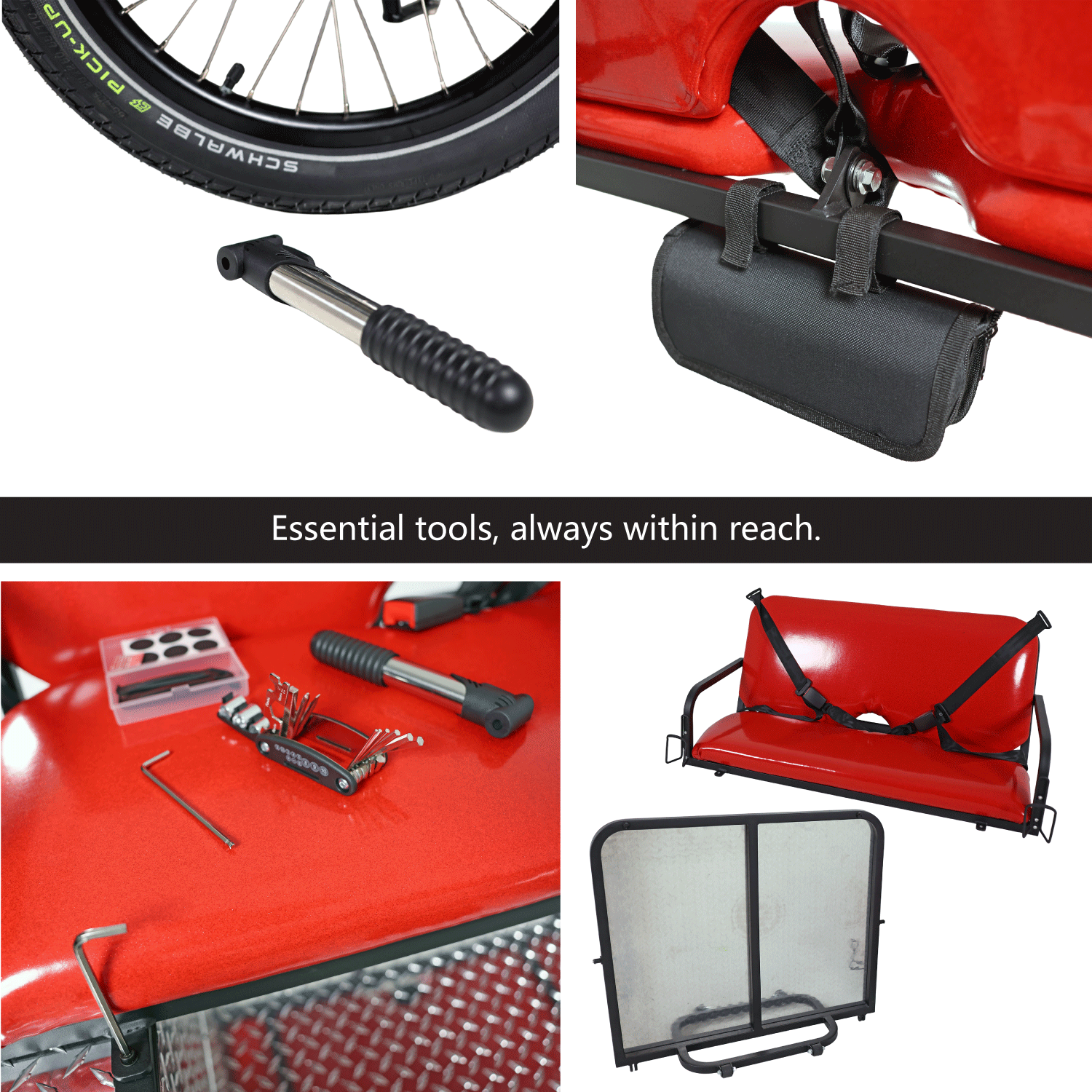

Integrated Storage
A storage compartment beneath the passenger bench provides space for helmets and other ride essentials without adding to the Trishaw's footprint.
General Specifications
Overall Dimensions, Ramp Raised
96" L × 44" W × 48" H
8 ft L × 3 ft 8 in W × 4 ft H
Fully Assembled Weight
Approximately 195 lb with battery, diamond-plate passenger compartment, integrated ramp, and passenger bench installed
Maximum Payload Capacity
600 lb
Wheel Configuration
Two 20" front wheels
One 20" driven rear wheel
Passenger Capacity
Up to two passengers seated side by side on the removable front bench
Wheelchair Configuration
One wheelchair user with the passenger bench removed and optional Q'Straint Wheelchair Securement System installed
Maximum Electric-Assisted Speed
12 mph
Electric Drive System
Motor
Bosch Cargo Line mid-drive, 750w
Maximum Torque
120 Nm

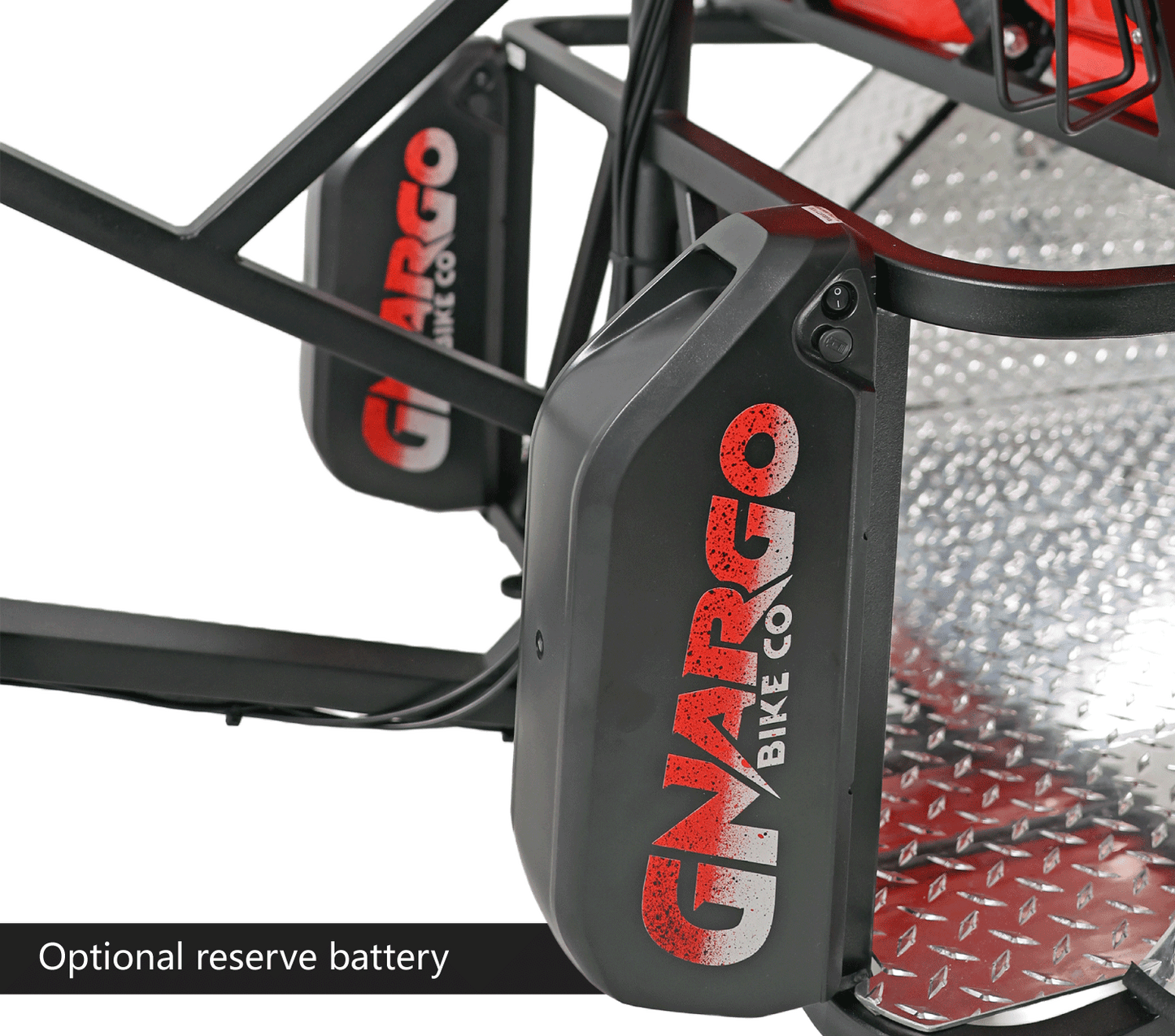

Battery
Bosch 800 Wh removable rechargeable battery

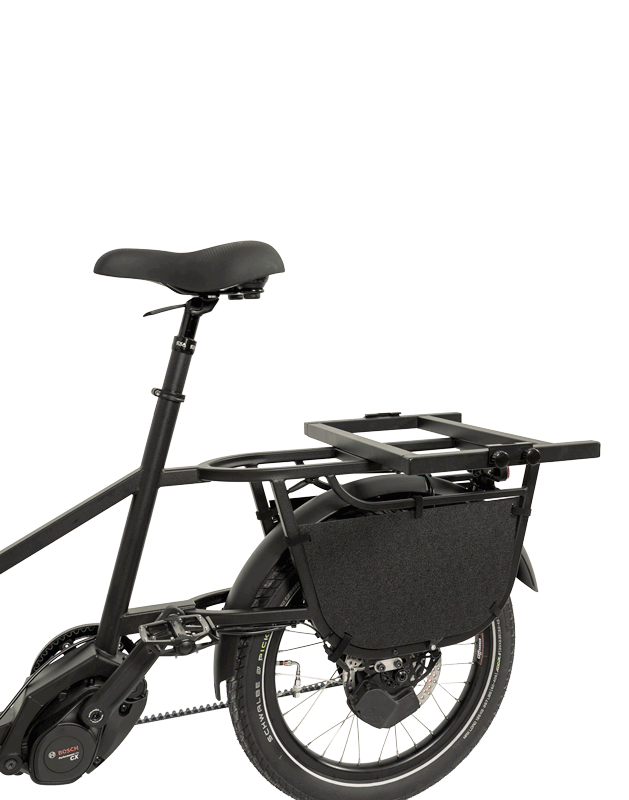

Drivetrain

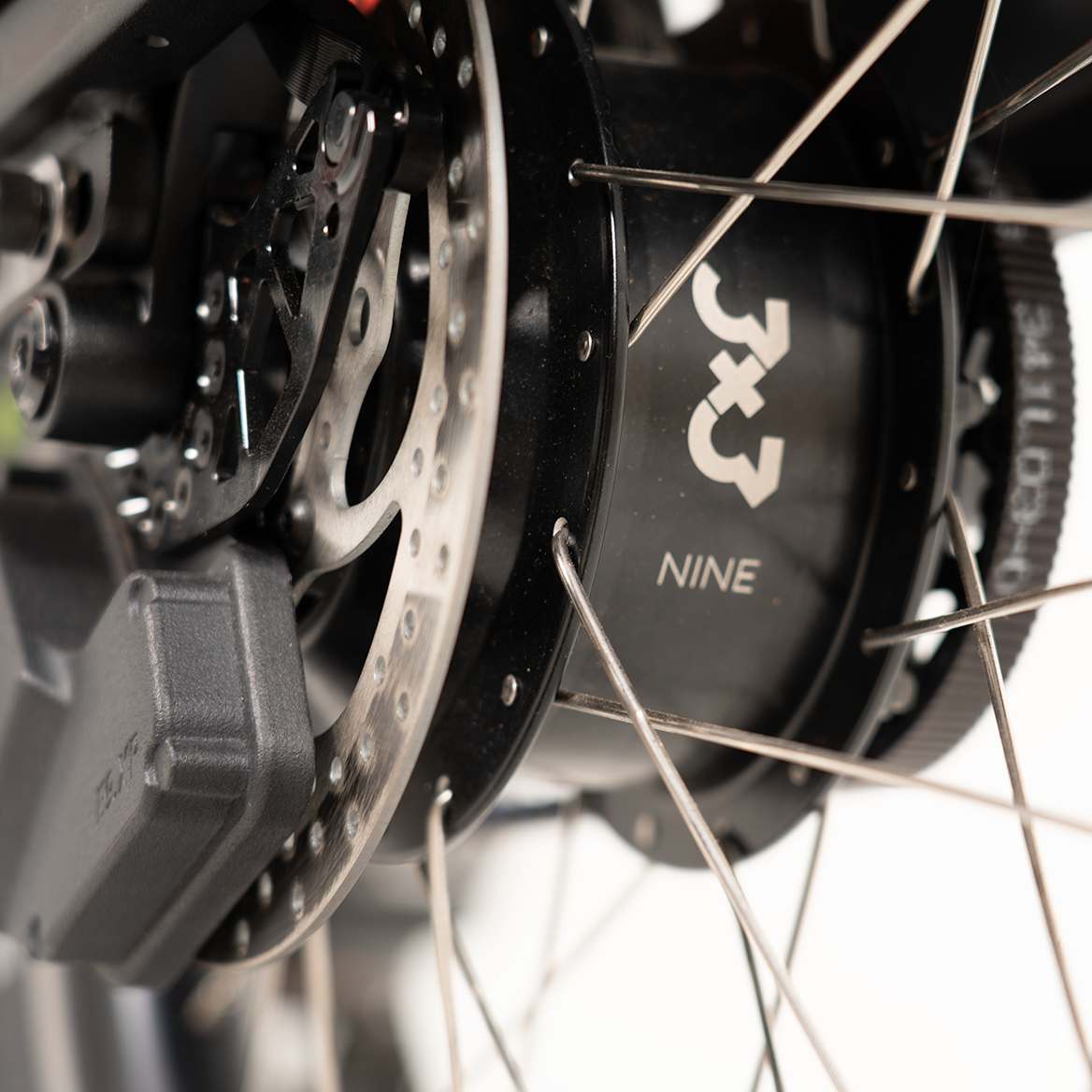

3X3 NINE internal gear hub (9-speed)
Gates Carbon Belt Drive

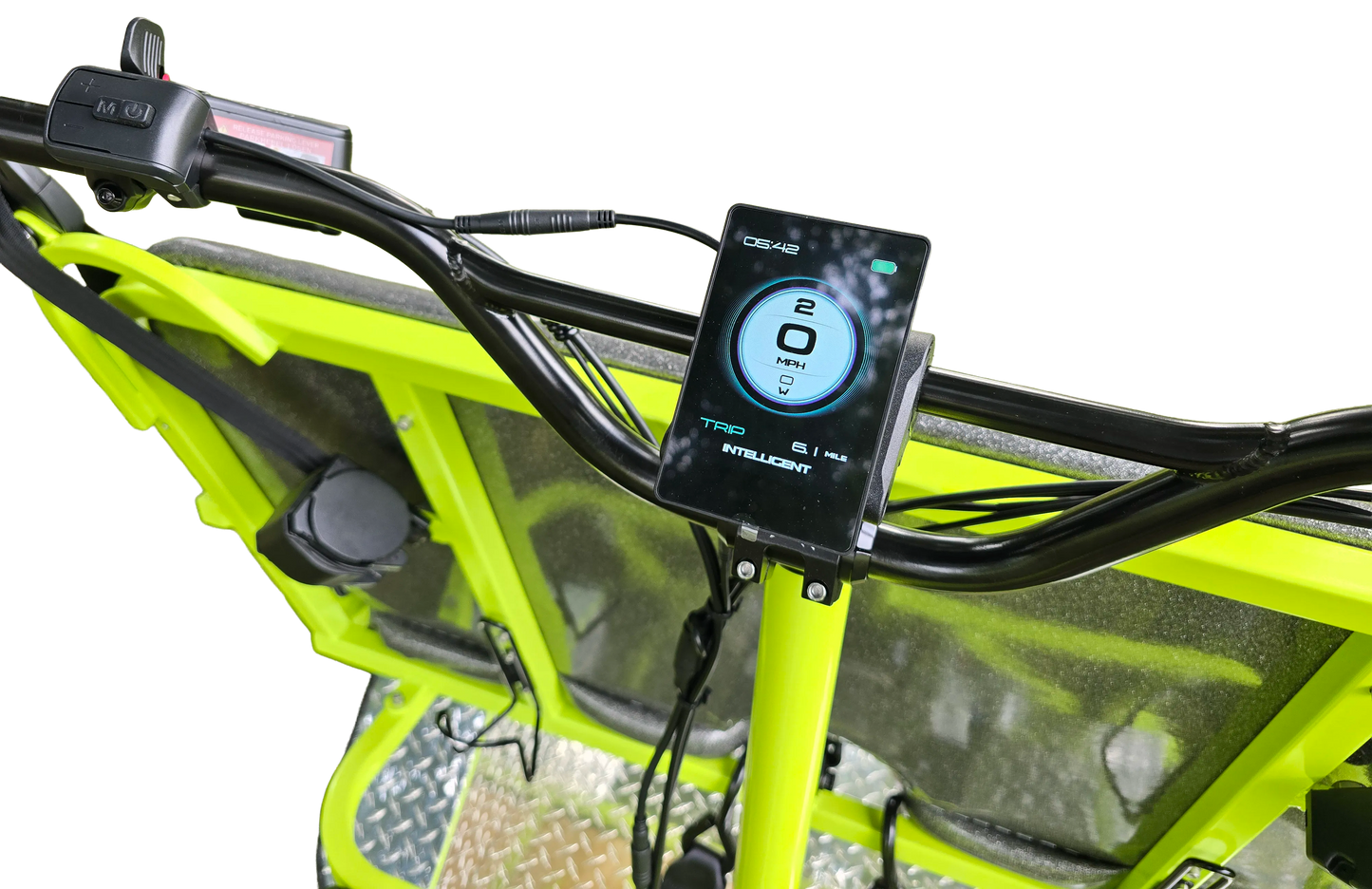

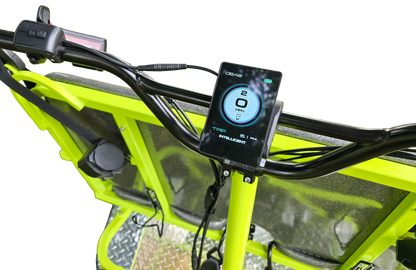

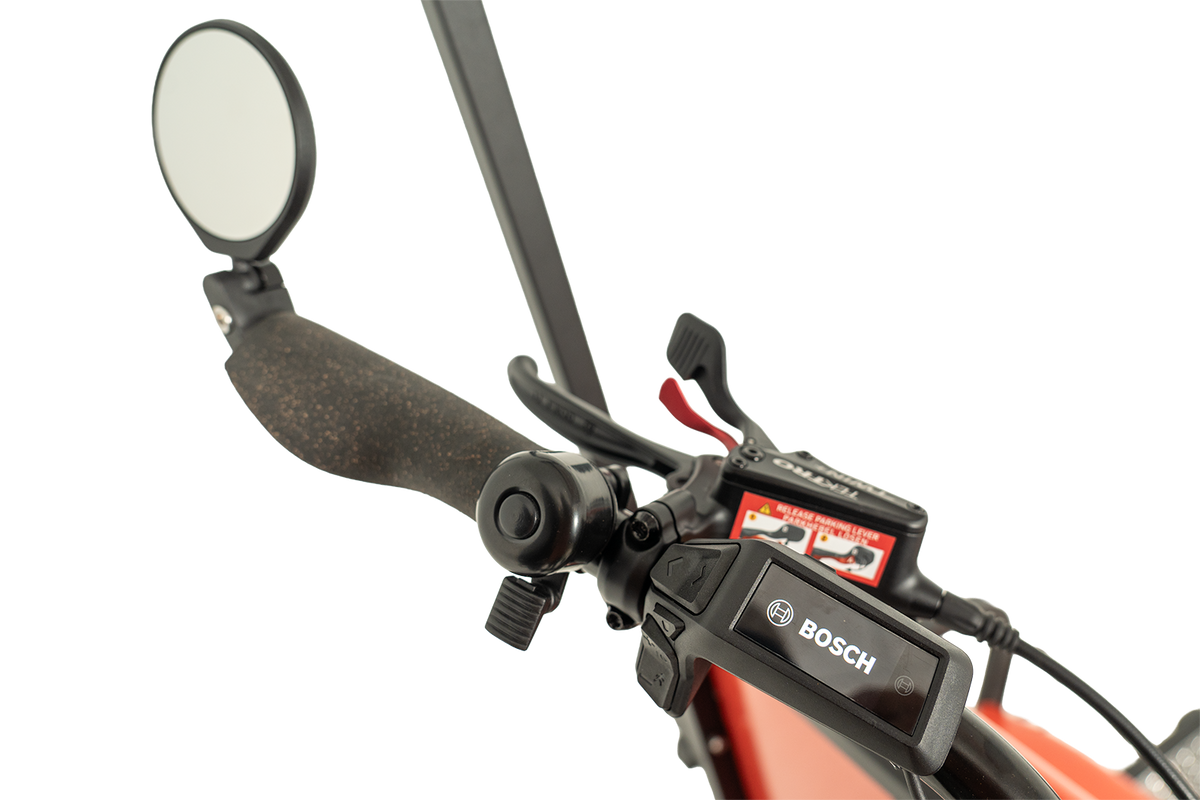

Controls

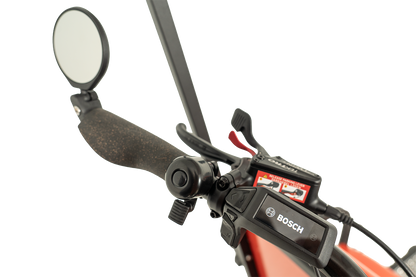

Bosch Purion 200

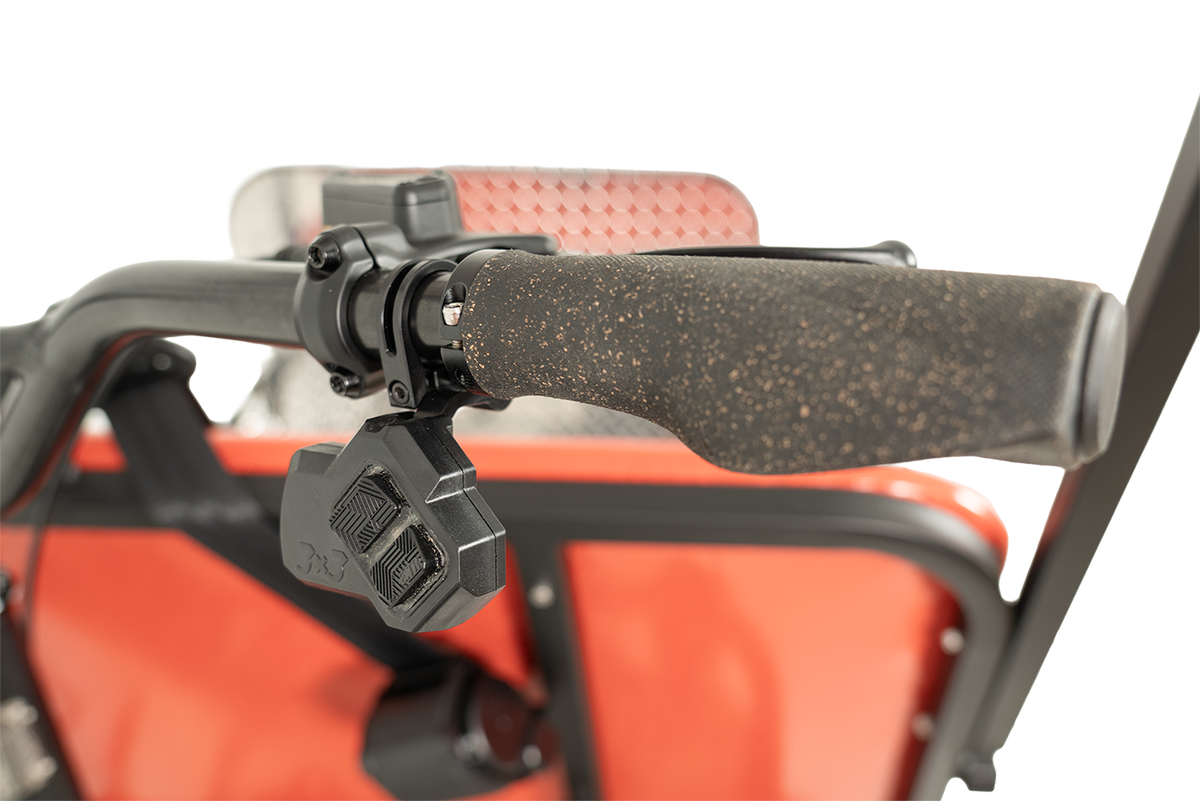

3x3 Wireless Shifter
No throttle
Wheels & Tires
Wheels
Three Heavy-duty 20" wheels hand-built by Velocity USA using Clydesdale rims
Tires
Schwalbe Motion Super Moto-X
• High-volume cargo/e-bike tire
• Double Defense puncture protection
• Reinforced for high-load applications
• E-50 rated
• Designed for cargo bikes and e-bikes operating on pavement and light terrain
Braking System
Front Brakes
TEKTRO Auriga Twin+ hydraulic disc brake system
• Twin-caliper system operating both front wheels
• 4-piston forged aluminum calipers
• 2.3 mm brake rotors
• Integrated parking-lock mechanism
Rear Brake
TEKTRO Auriga+ hydraulic disc brake
• Single 4-piston forged aluminum caliper
• 2.3 mm brake rotor
• Four-finger brake lever
• Integrated parking-lock mechanism
Parking Brakes
Independent parking-lock functionality on both front and rear brake levers allows the front and rear braking systems to be locked while the Trishaw is stationary.
Accessibility & Passenger Compartment

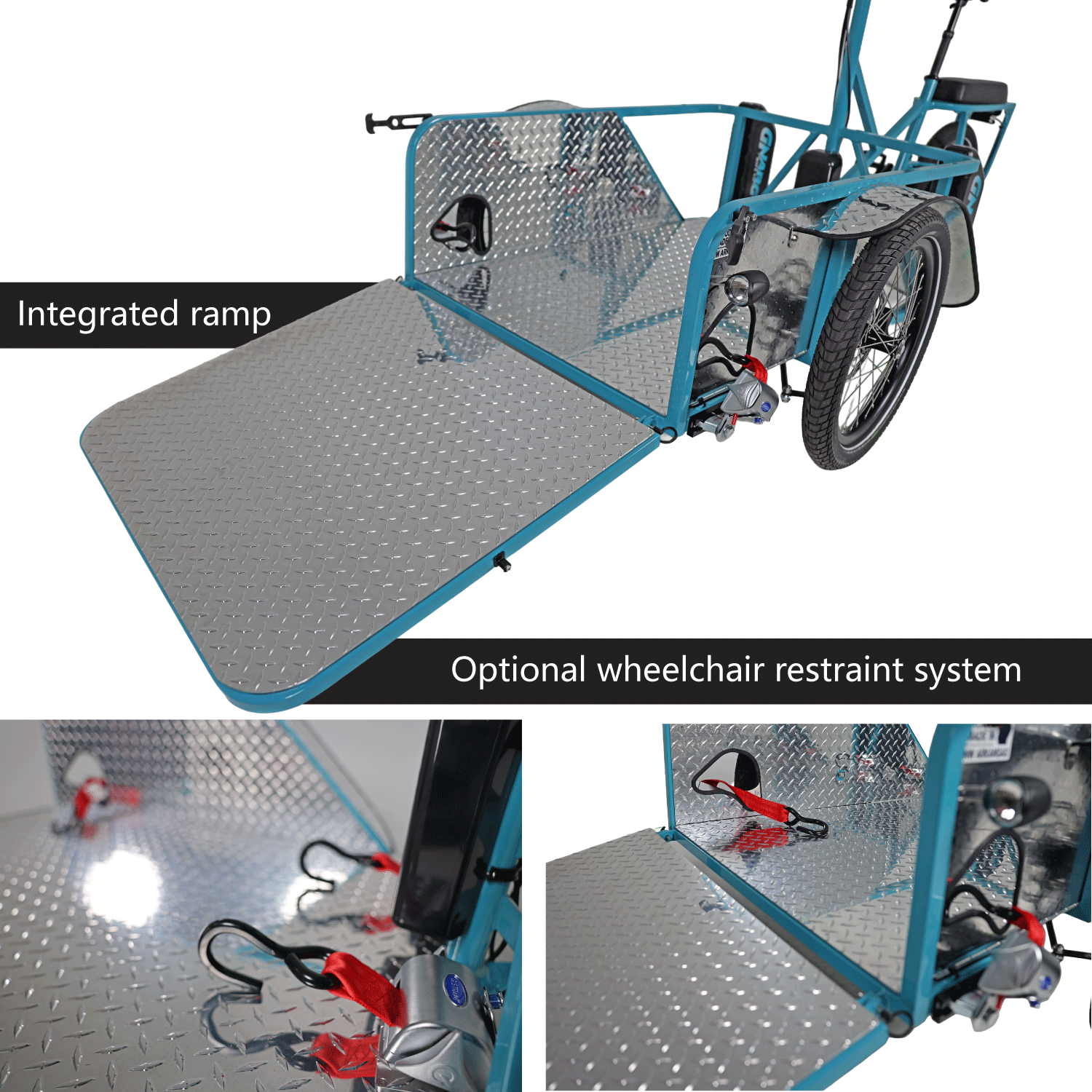

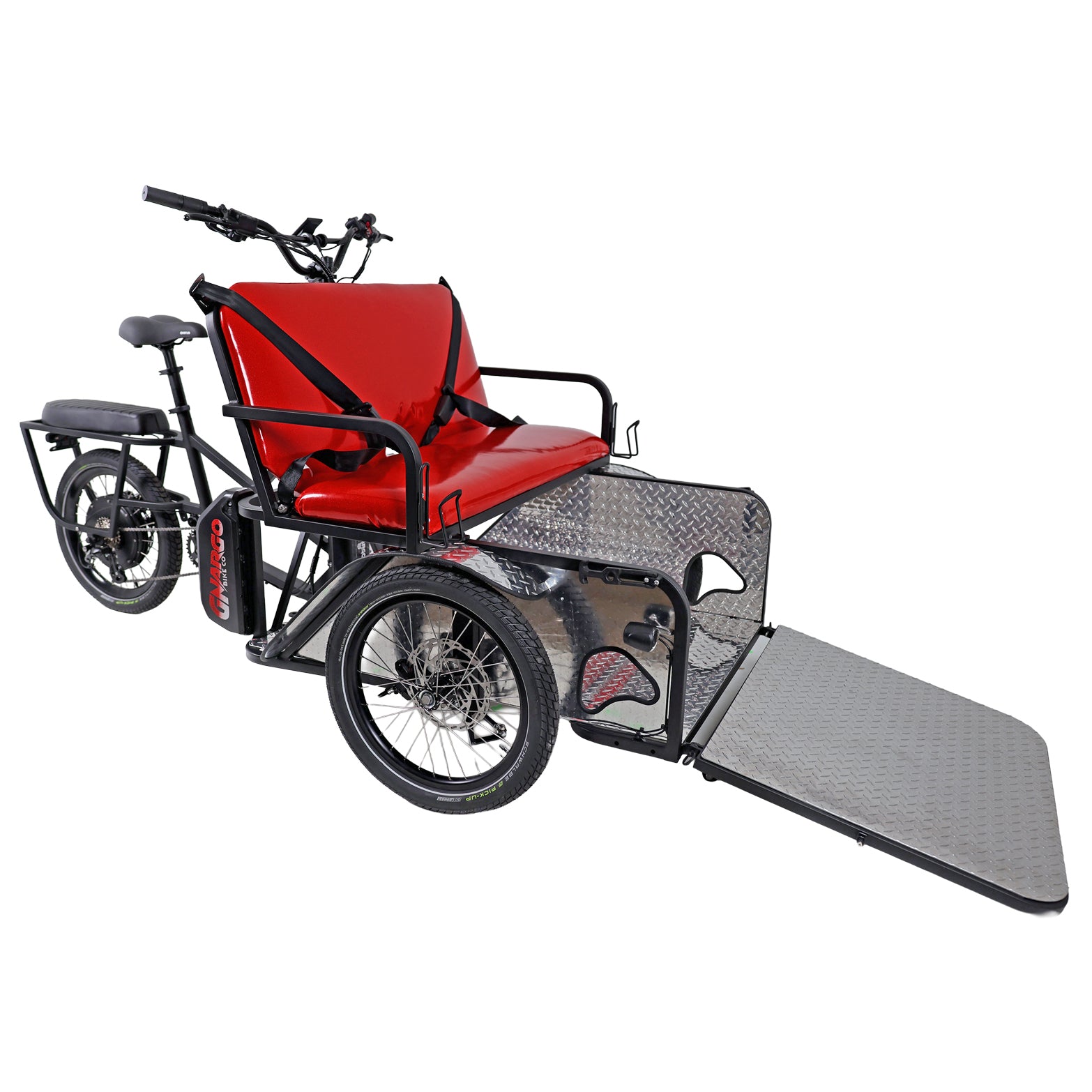

Integrated Access Ramp
The front gate folds down to create an integrated access ramp. When raised, the gate locks into position and also functions as a handrail around the passenger compartment.
Removable Passenger Bench
The padded two-passenger bench can be removed to provide an open compartment for wheelchair or cargo use.

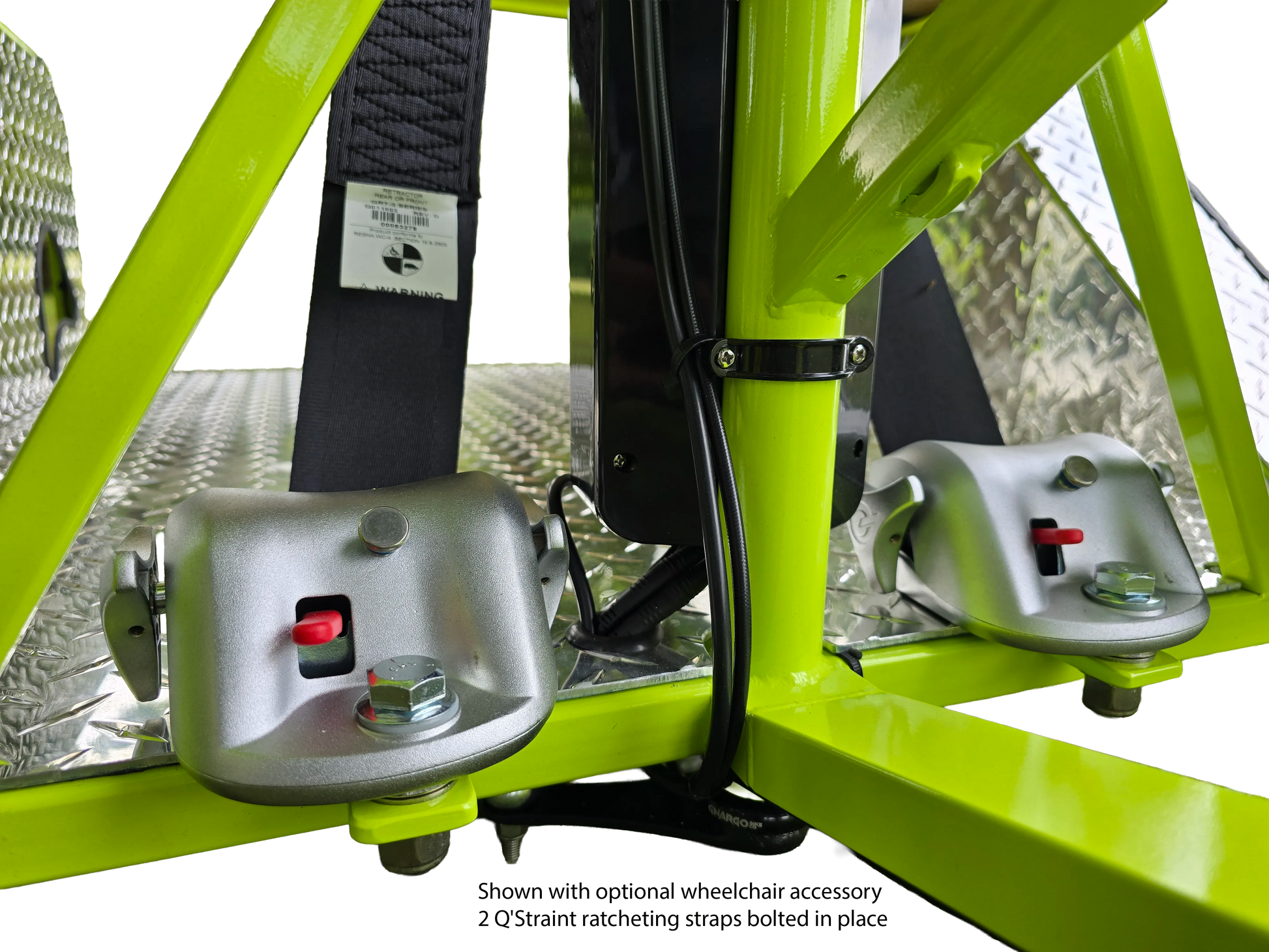

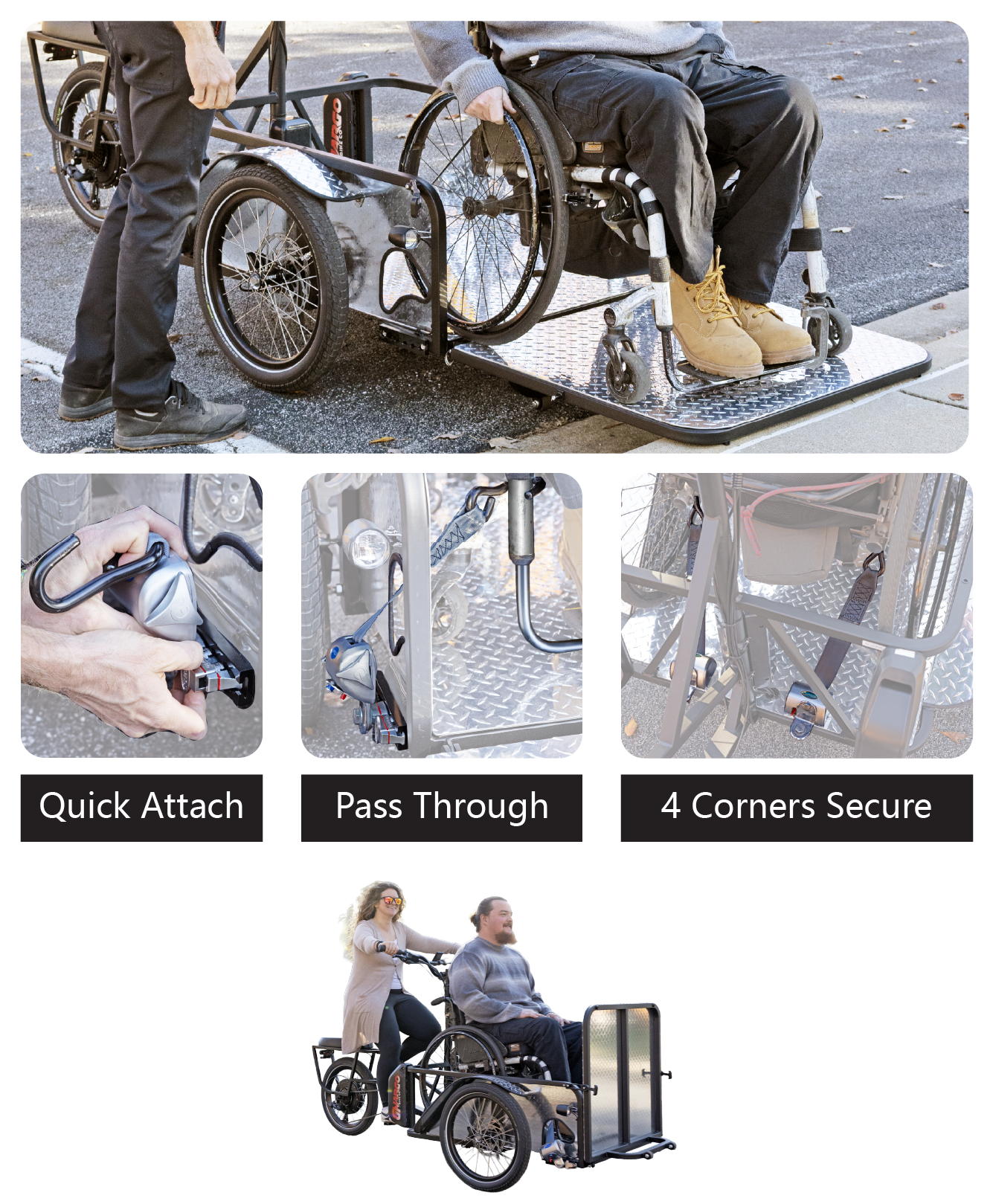

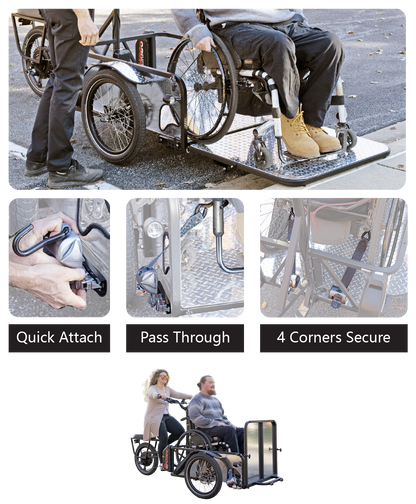

Wheelchair Securement

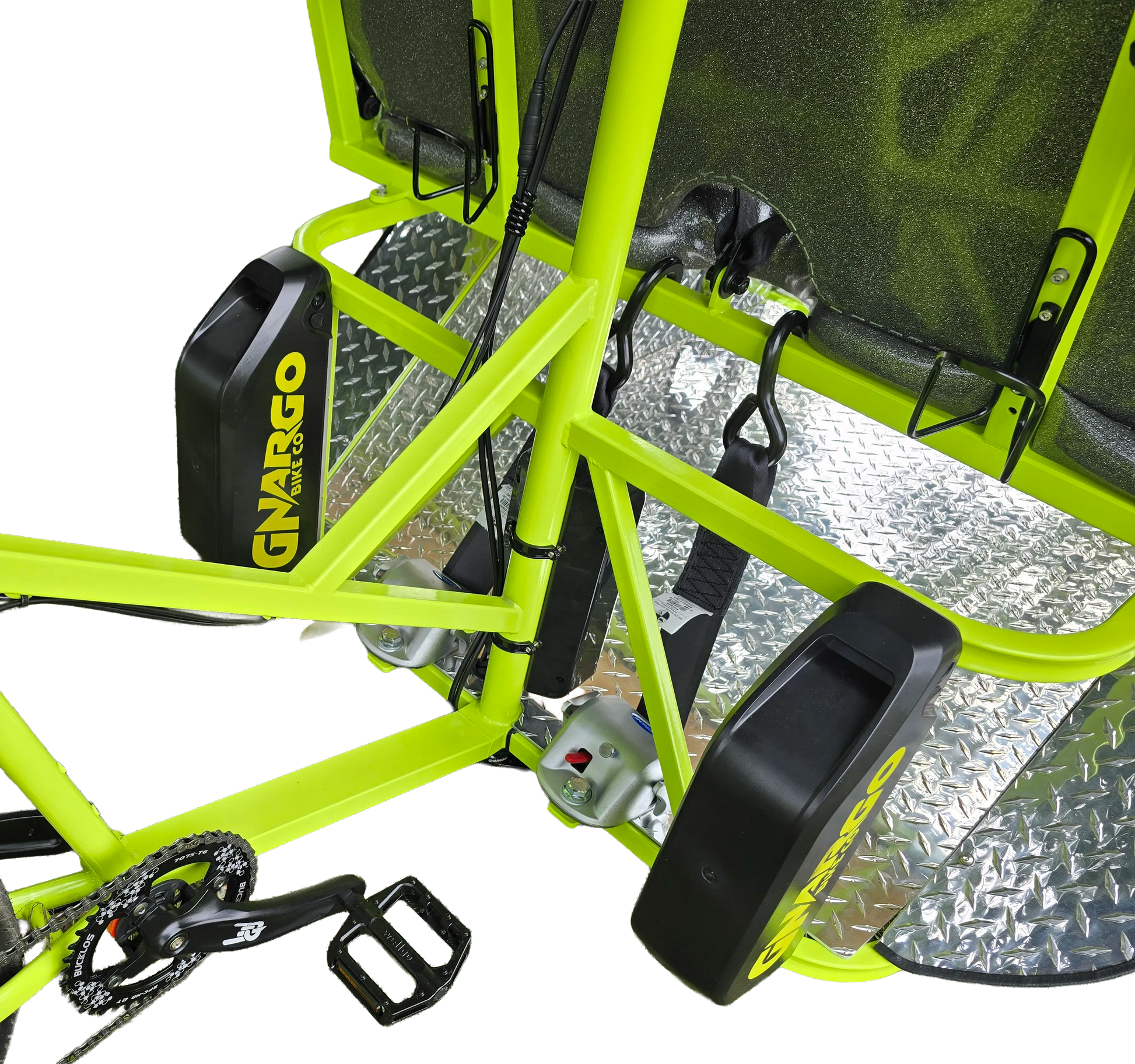

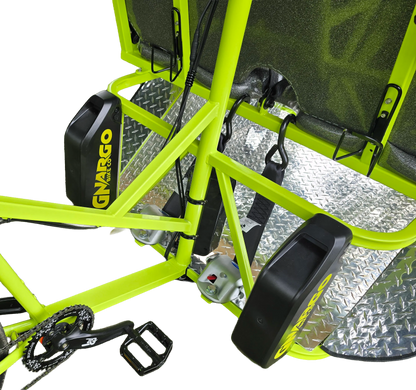

Optional Q'Straint Wheelchair Securement System provides securement for one wheelchair and includes:
• Four retractors for four-point wheelchair securement
• One passenger lap belt

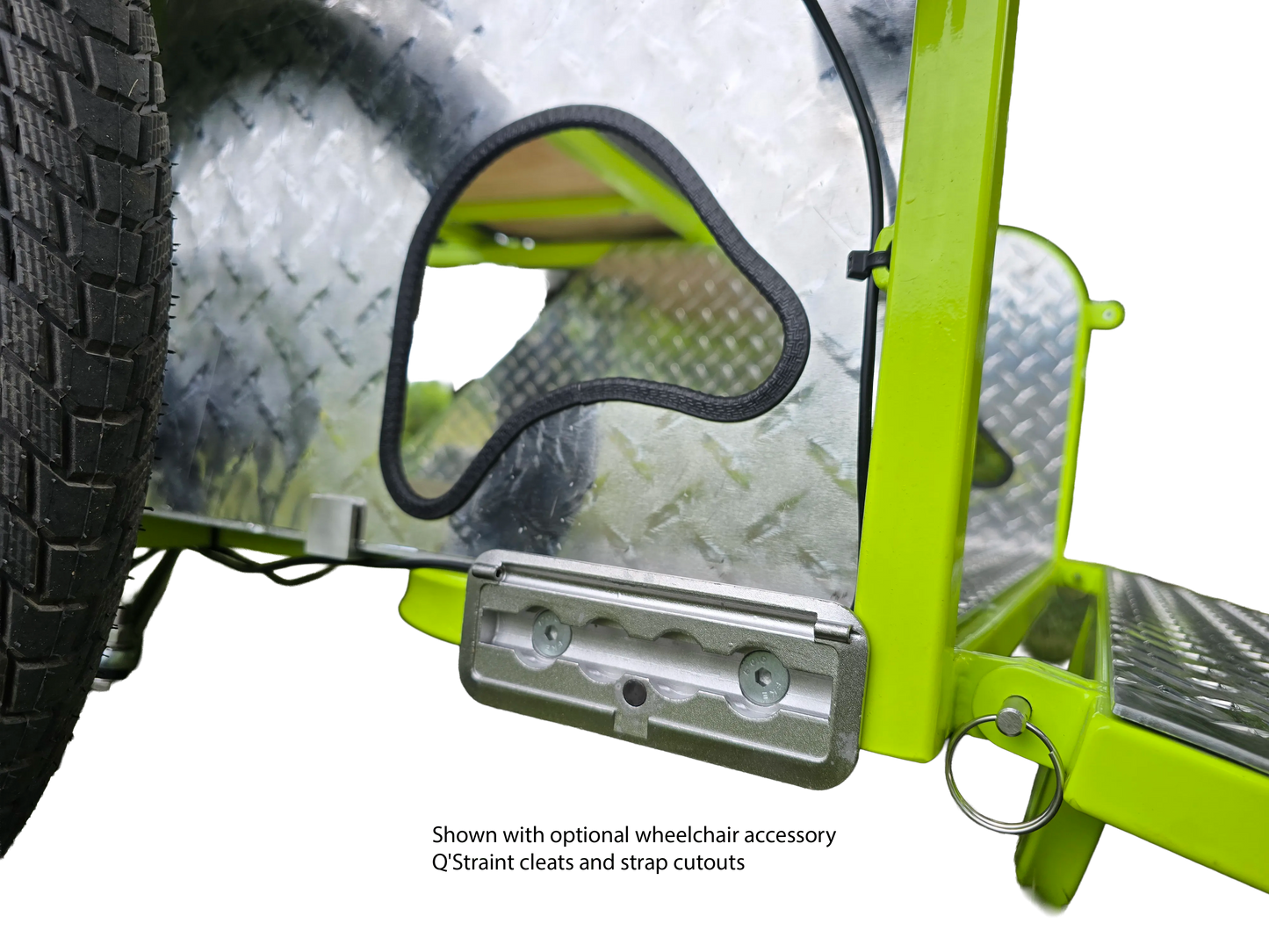

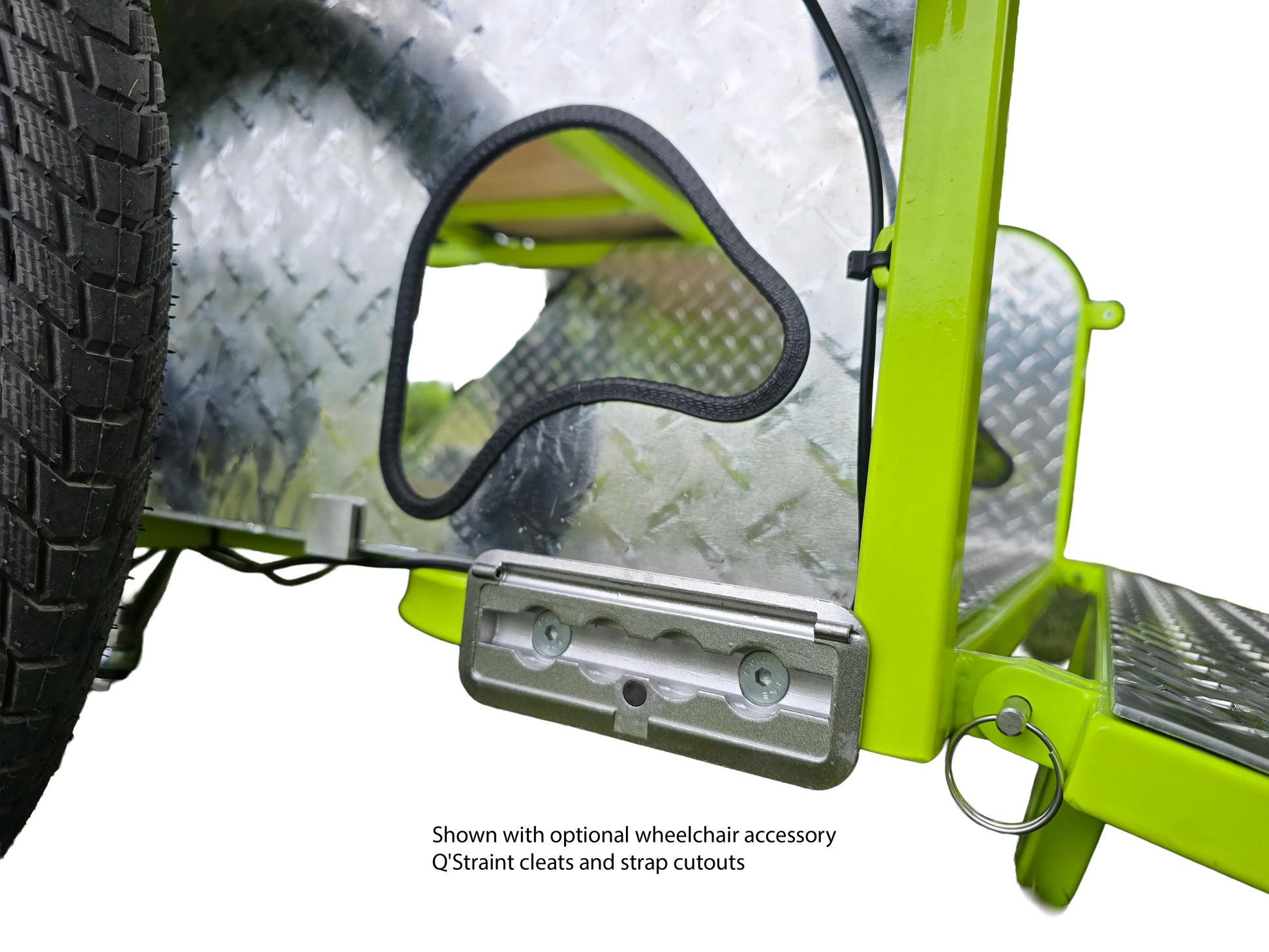

• Integrated L-track mounting points built into the Trishaw chassis for quick installation and removal of the securement system
Passenger Entry
The integrated ramp also provides easier entry and exit for passengers who have difficulty stepping into a conventional cycle passenger compartment.

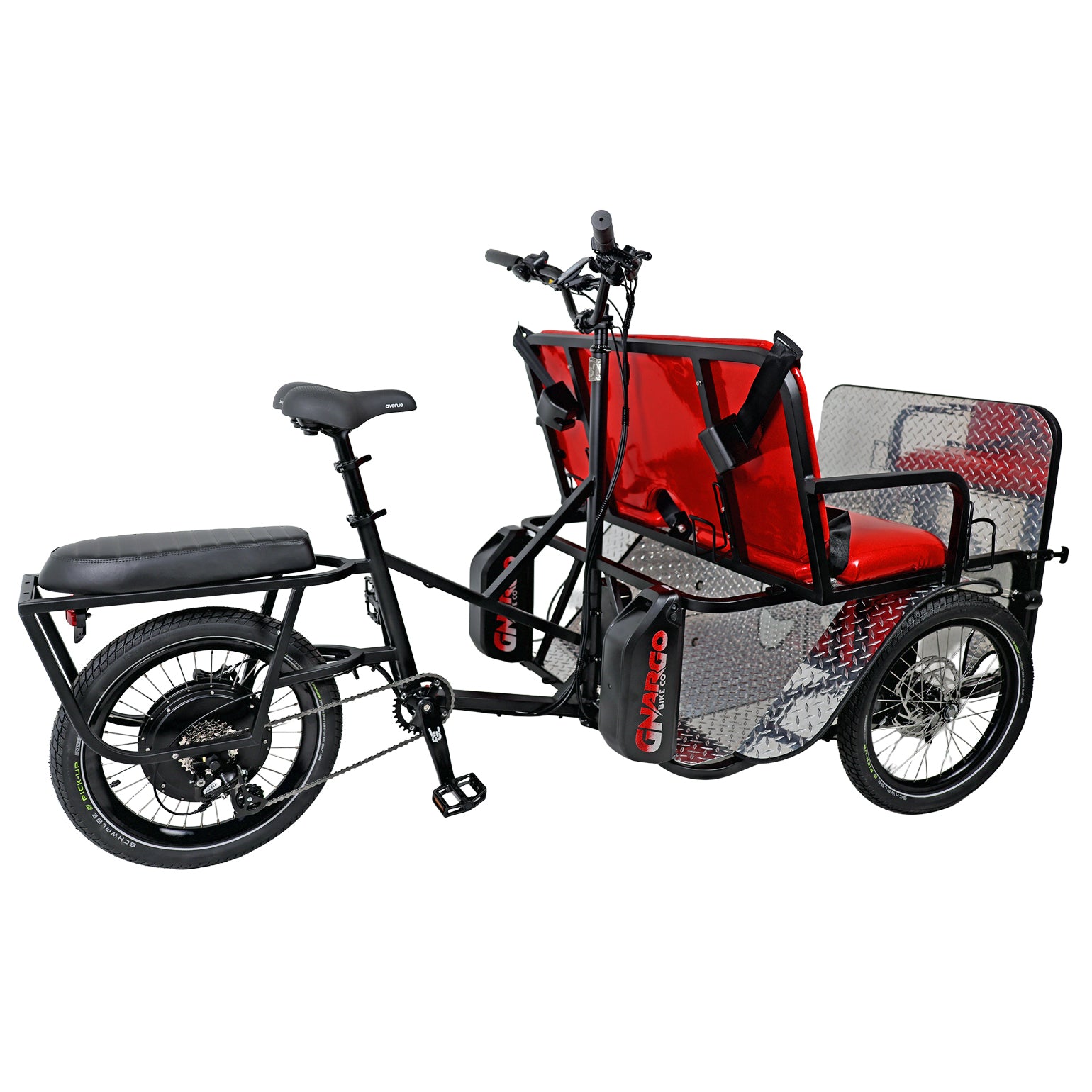

Chassis & Construction
Configuration
Three-wheel front-load cycle with two front wheels supporting the passenger compartment and one driven rear wheel beneath the pilot
Frame
Gnargo-manufactured steel frame
Manufacturing
Fabricated and assembled in Bentonville, Arkansas
Intended Operating Environment
Designed primarily for low-speed operation on community routes, campuses, greenways, neighborhood streets, and similar environments.
Available Equipment & Options
• Q'Straint Wheelchair Securement System

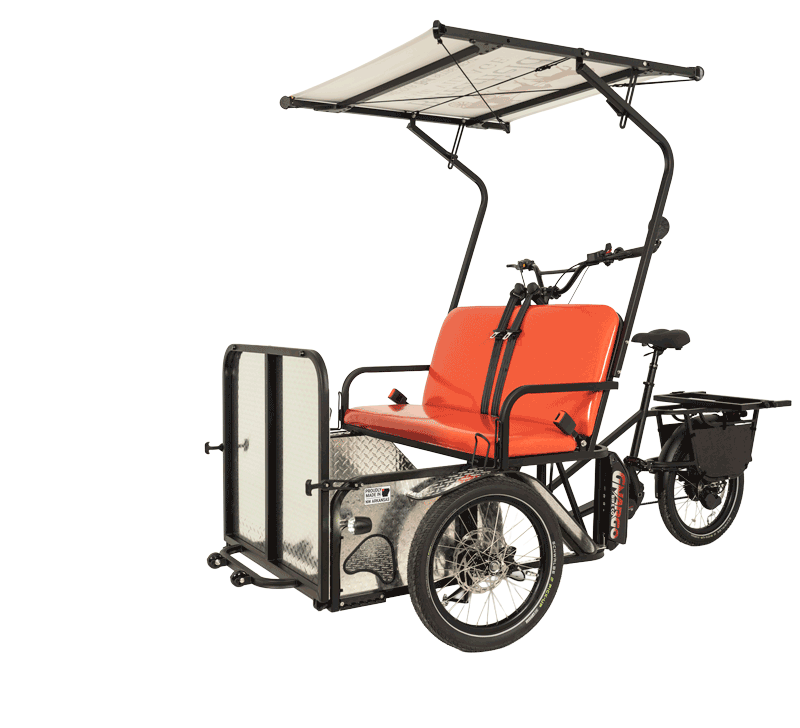

• Passenger sunshade

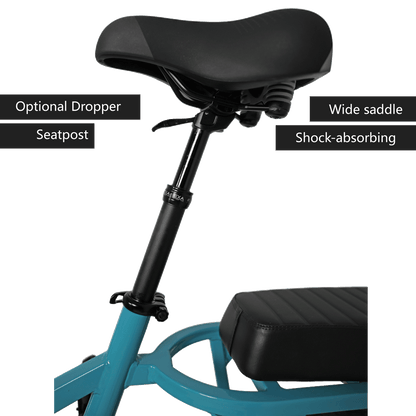

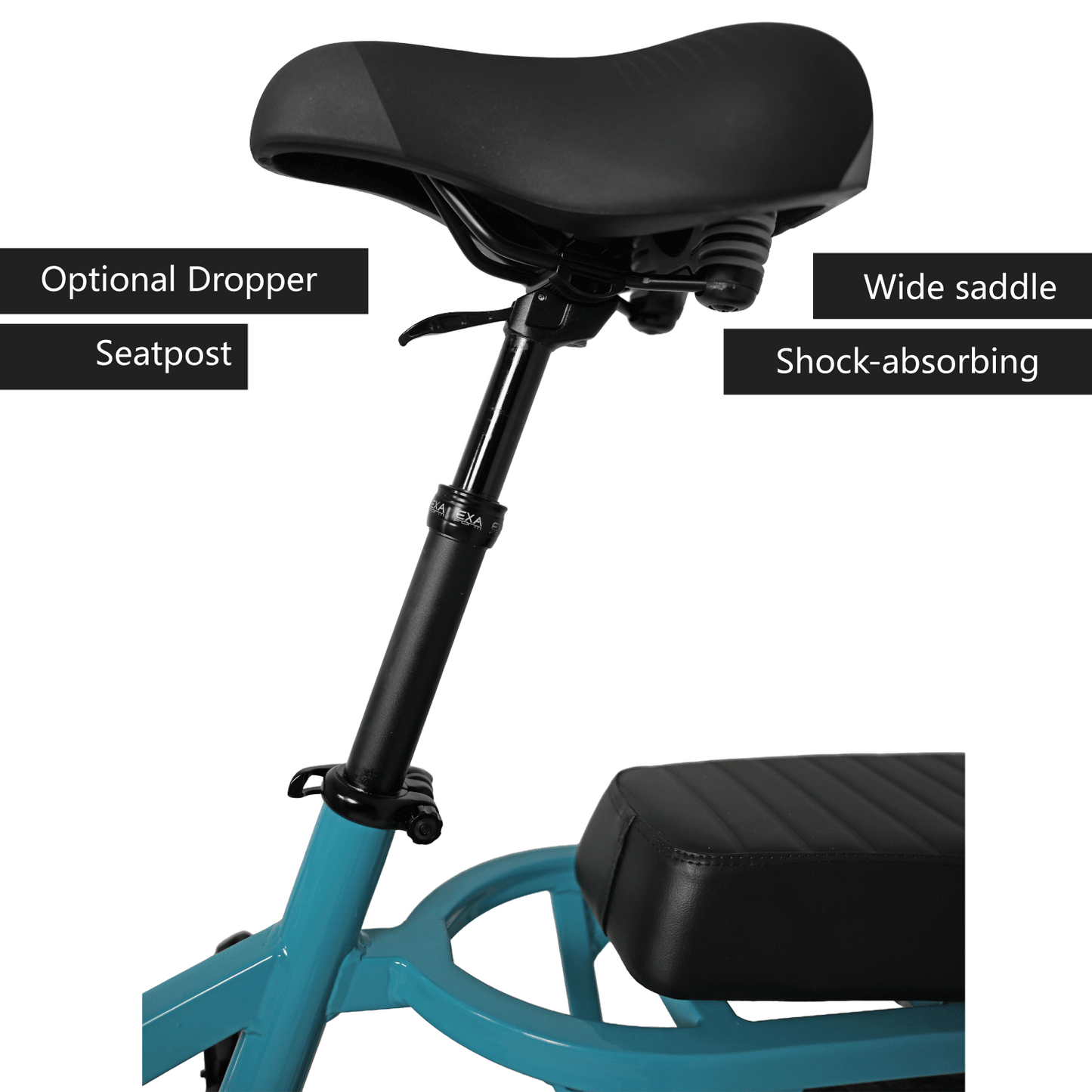

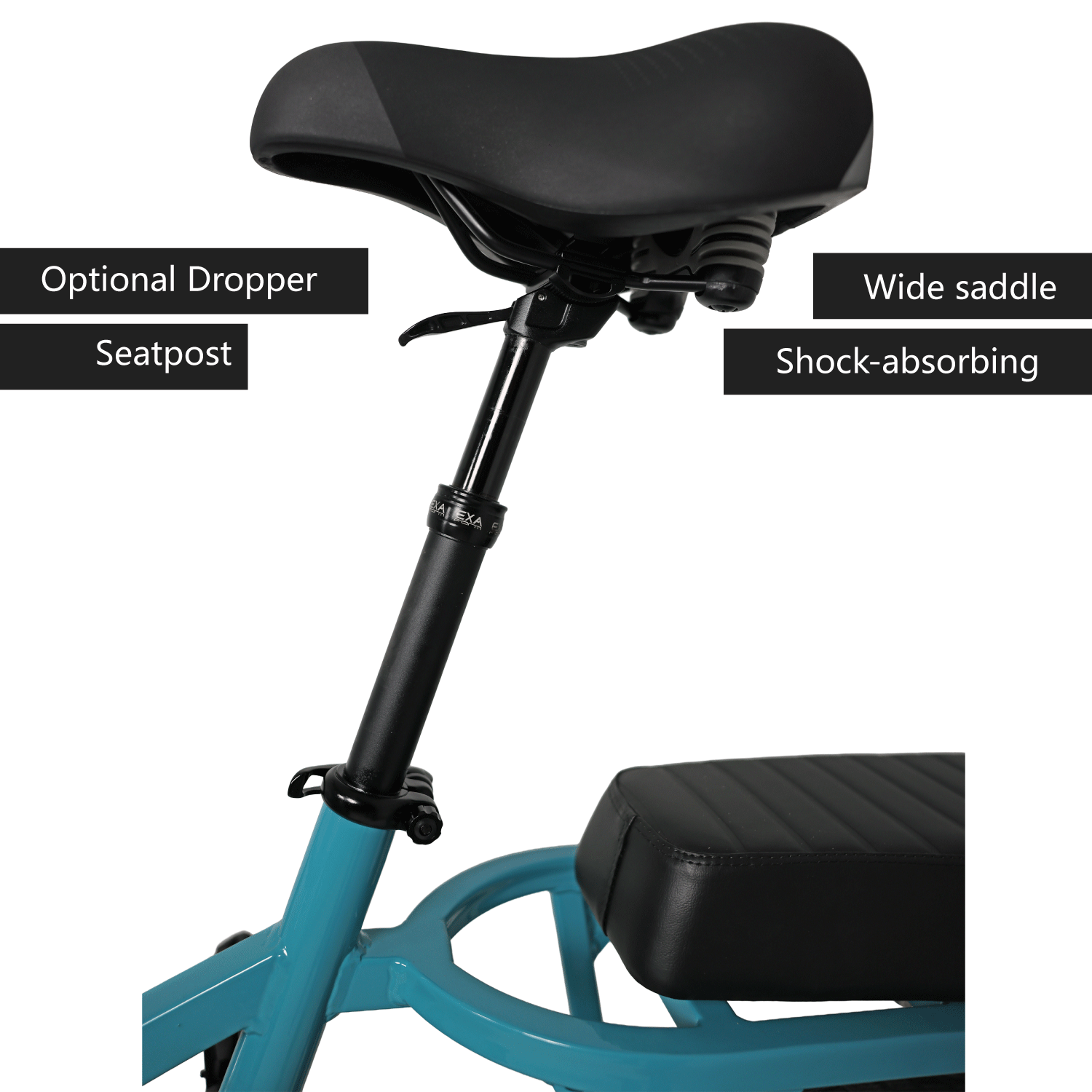

• Adjustable/dropper pilot seatpost
• Custom frame colors and upholstery
• Rear signage
• Passenger and cargo accessories
Manufacturer
Gnargo Bike Co.
Bentonville, Arkansas
Made in the USA
